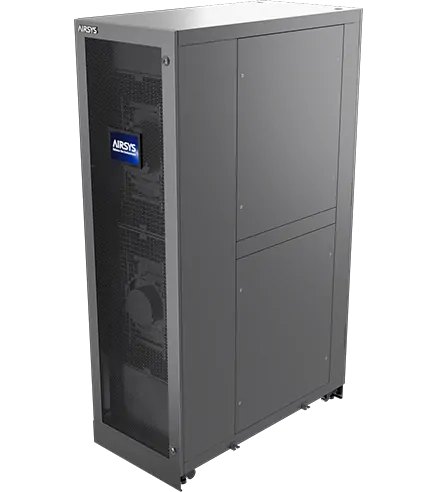

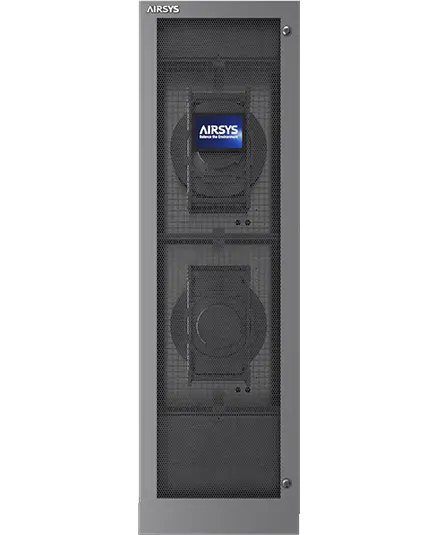

ChillRow

Optimize your data center’s performance with ChillRow, the advanced in-row precision air conditioner designed for unmatched cooling efficiency.

ChillRow Series Information

Precision-engineered for high-density cooling, delivering unmatched temperature and humidity control. Installed directly beside server racks, these units target heat sources with adaptive inverter technology, efficiently managing concentrated thermal loads (13.2–62.5kW range). Built for reliability in mission-critical environments.

Core Features

Eco-Friendly R410A Refrigerant – Low environmental impact with high-performance cooling

Front-to-Rear Precision Airflow – Horizontal design delivers targeted cooling, eliminating hotspots

Energy-Smart EC Fans – Variable-speed AC/DC control for adaptive, quiet operation

Outdoor unit: VEMG or CMEG series – install vertically or horizontally to match your space constraints.

Configuration Options

Compact Cabinet Design – Choose 300mm or 600mm width to fit your space

Dual Cooling Modes – Select between DXA (air-cooled) or CW (chilled water) systems for optimal efficiency

Ideal Application

ChillRow operates at peak efficiency

when paired with cold/hot aisle

containment systems

40% Lower Cooling Costs – Maximize energy savings

Zero Hot Spots – Precise temperature control eliminates risk zones

Airflow Separation – Prevents costly air mixing

Higher Density Capacity – Support more racks in same footprint

Guaranteed Uptime – Protect critical equipment

Cold Aisle

Hot Aisle

Cold Aisle Containment

Precisely controlled supply air for closed cold aisles

Hot Aisle Containment

Optimized return air management for enclosed hot aisles

Key Specifications

Flexible Deployment

300mm & 600mm cabinet options

Compatible with new builds and retrofits

Intelligent Control

Dual-mode operation: Supply/Return air temperature control

Comprehensive monitoring: Remote air temperature & humidity sensors

Precision Climate Control

ChillRow.DXA Temperature Regulation

Supply Air – 15-30°C (±1°C accuracy)

Return Air – 30-45°C (±1°C accuracy)

ChillRow.CW Temperature Range

Full spectrum control – 15-45°C (±1°C accuracy)

Humidity Management

Maintains 35-80% RH (±5% precision)
