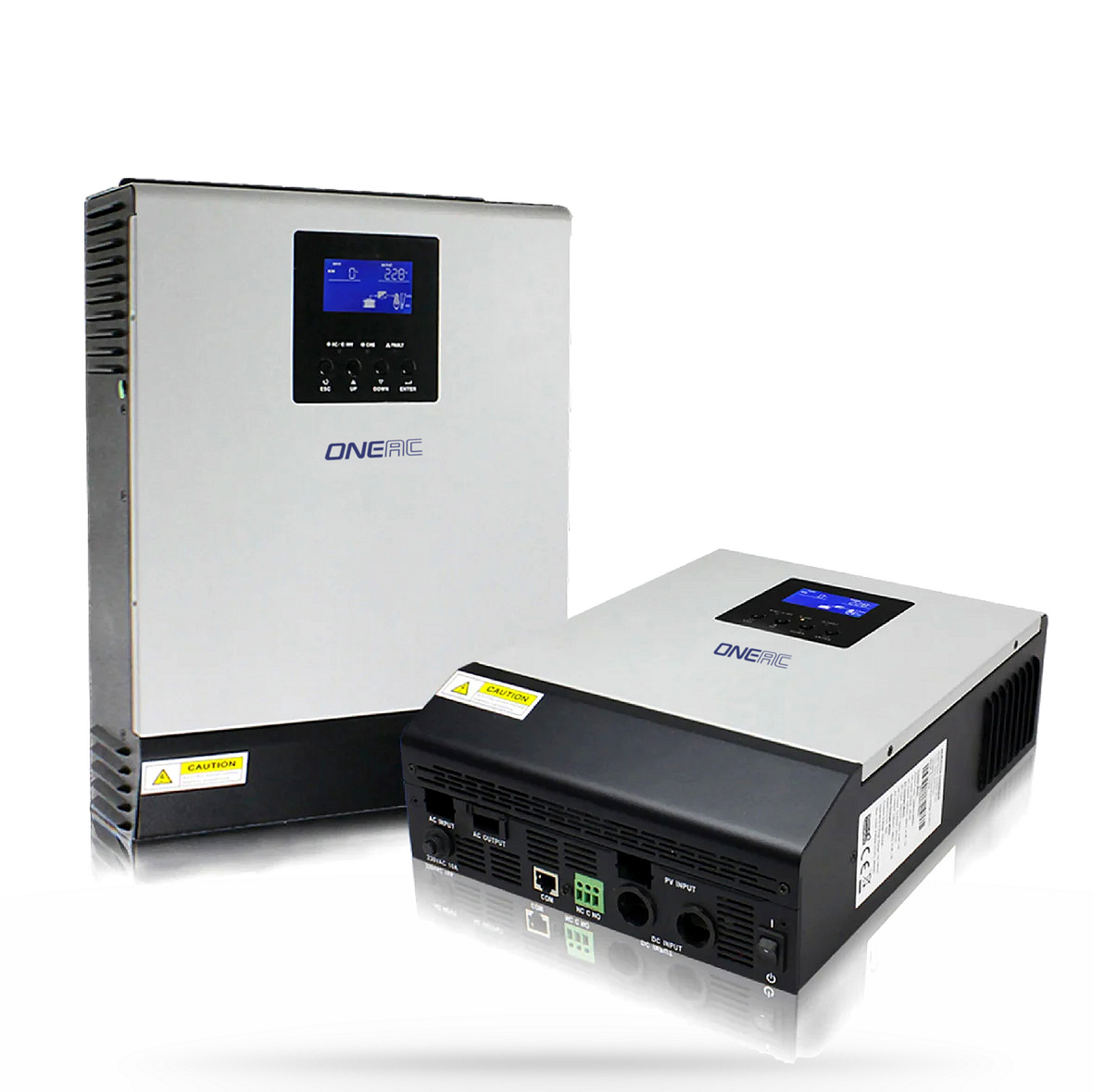

PSK series 2-5KVA Pure Sine Wave Inverter
Hybrid Solar Inverters

PSK series 2-5KVA Pure Sine Wave Inverter

5 kVAPure sine wave

PSK2K-3K and 4K-5K is equipped with MPPT solar charge controller to maximize and regulate DC power from the solar array for charging the battery bank.Transformerless design provides reliable power conversion in compact size. Besides, it's worry-free to start up motor-type loads such as refrigerators, motors, pumps, compressors and laser printers as well as...

    Ask about this product
    Countrywide delivery 12-month local warranty Installation available
    Specifications
    ModelPSK2000-24PSK3000-24PSK4000-48PSK5000-48
    AC InputNominal Power2000VA/1600W3000VA/2400W4000VA/3200W5000VA/4000W
    Nominal input Voltage230VAC
    Low Line Disconnect170Vac±7(UPS); 90Vac±7(Appliances)
    Low Line Re-connect180Vac±7(UPS); 100Vac±7(Appliances)
    High Line Disconnect280Vac±7(UPS); 280Vac±7(Appliances)
    High Line Re-connect270Vac±7(UPS); 270Vac±7(Appliances)
    MAX AC input VoltageMax:300VAC
    Frequency50Hz/60Hz
    efficiency(Line Mode)>95%(Rated R load, battery full charged)
    Transfer Time10ms typical(UPS); 20ms typical(Appliances)
    AC OutputAC Voltage Regulation (Batt. Mode)230VAC ± 5%
    Output Voltage WaveformPure sine wave
    Surge Capacity2*rated power for 5 seconds
    Peak efficiency90%
    No load Power Consumption<25W<50W
    Saving Mode Power Consumption<10W<15W
    Solar Charger & Ac ChargerMaximun PV Array Power600W4000W
    MPPT Range @ Operating Voltage30VDC ~75VDC60VDC ~115VDC
    Maximum PV Array Open Circuit Voltage75VDC145VDC
    Maximum Solar Charge Current25A80A
    Maximum AC Charge Current30A60A
    Maximum Charge Current55A140A
    Standby Power Consumption2W
    Efficiency98.0% max
    Battery & Ac ChargerBattery Voltage24 VDC48 VDC
    Bulk Charge Voltage28.2 VDC56.4 VDC
    Floating Charge Voltage27 VDC54 VDC
    Overcharge Protection31 VDC62 VDC
    General SpecificationsOperating Temperature Range0℃ to 55℃
    Storage Temperature-15℃ ~ 60℃-15℃ ~ 60℃
    Operation Humidity5% to 95% Relative Humidity(Non-condensing)
    L*W*H (mm)100*272*355mm140*295*540mm
    Net Weight (Kg)7.0kg7.4kg12.5kg13.5kg
