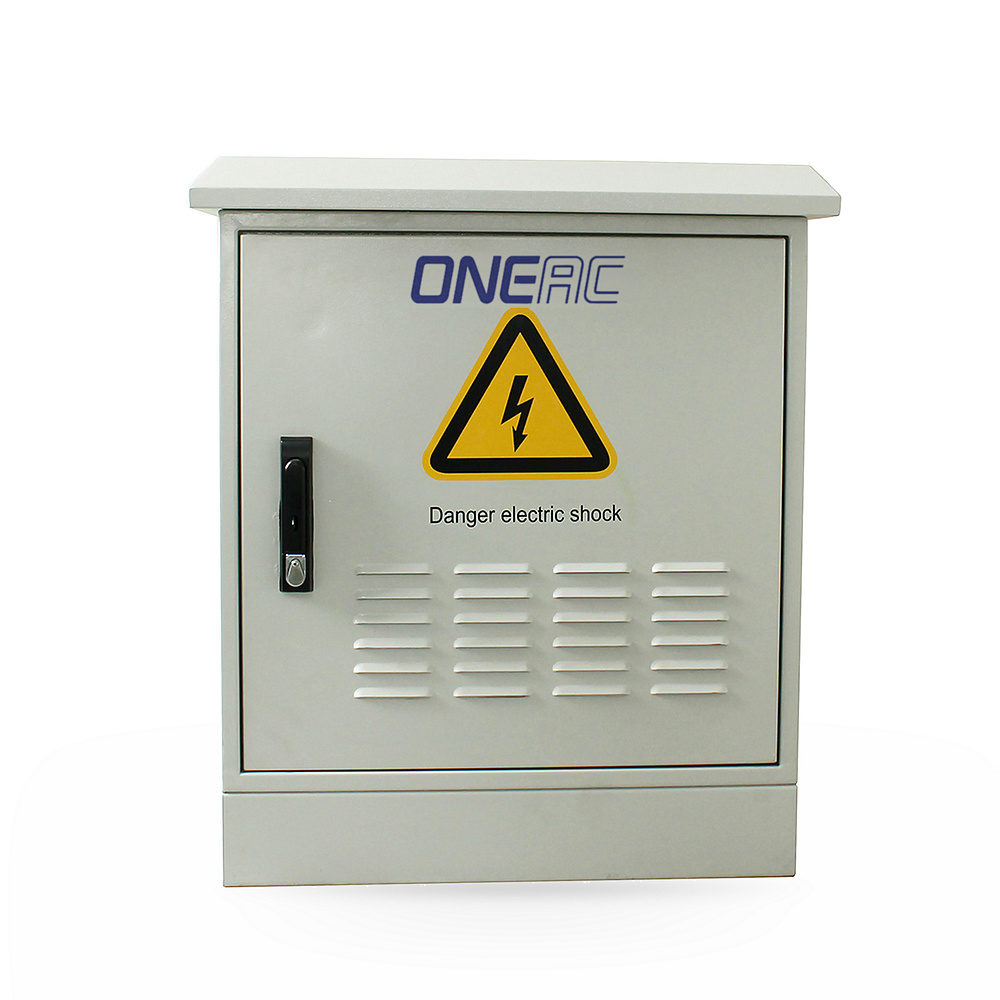

1-3KVA IP65 Outdoor Online UPS
Outdoor & Industrial UPS

1-3KVA IP65 Outdoor Online UPS

3 kVAIP65 rated

RA series High frequency outdoor UPS is used In suburban district, remote road or mountain, severe environment such as areas with high temperature(50℃), severe dust, moisture, rain, mist erosion, poor grid power quality(voltage durative higher than 260V or less than 160V, Frequency abnormal change)

  • Provides a pure uninterrupted AC sine wave power supply for the outdoor communication / network equipment.
  • The use of high temperature, anti cold, salt spray, anti-corrosion, anti dust, waterproof, lightning protection design.
  • Advanced MCU micro processor control Technology, ensure long life reliability.
  • Excellent Protection against over voltage, overload, over current, overcharge and so on.
  • Strong anti-jamming capacity, Lightning, surge, short-circuit, network/fax/modem surge protection. Input L and N lines reverse wiring detection.
Ask about this product
Countrywide delivery 12-month local warranty Installation available
All features (10)
  • DC start function, input RFC reuses function.
  • Humanized bypass output adjustable.
  • Available to work with generators.
  • RS232 intelligent communication monitoring.
  • AS-400 Dry contact and SNMP cars remote intelligent control.
Specifications
ModelRA1KLRA2KLRA3KL
CapacityVA/W1000VA/800W2000VA/1600W3000VA/2400W
InputNominal Voltage110/115/120VAC or 200/220/230/240VAC 200/208/220/230/240VAC
Voltage Range115～300VAC
Power Factor≥0.97
Frequency Range50Hz:46~54Hz; 60Hz:56~64Hz
OutputVoltage110/120/220/230/240(1±2%)VAC
Frequency50/60Hz (Adjustable); 50Hz AC Mode: Follow AC Mode (AC Range 46~54Hz); Battery Mode: 50Hz (1±0.2%) 60Hz AC Mode: Follow AC Mode (AC Range 56~64Hz); Battery Mode: 60Hz (1±0.2%)
Wave FormPure sine wave
Power Factor0.8
Harmonic Distortion≤3% THD (Linear load) ≤7% THD (Non-Linear load)
Overload Capacity110%～150% maintain 30s then turn to bypass ourput; ＞150% maintain 300ms
Current Crest Ratio3:1
ConnectionsTerminal block
EfficiencyBattery Mode83%
AC Mode85%
BatteryTypeSealed free maintenance lead acid battery
Nominal DC voltage36VDC96VDC96VDC
Stansard Battery Cabinet3*100AH8*100AH8*100AH
Backup Time (Full Load)Depens on the capacity of internal battery bank (24AH,38AH,65AH,80AH and 100AH optional)
Charge Current (Max)6.0A6.0A6.0A
Charge Voltage (VDC)41.1V±0.2VDC110V±0.6VDC110V±0.6VDC
Recharge TimeDepends on the capacity of internal battery bank
BypassAutomatic TransferOn overload and UPS failure
Before UPS Power-onYES
Transfer Time0 ms(from imain to battery and vice versa); Less than 4ms from inverter to bypass and vice versa
indicatorsLCD DisplayUPS status, Battery capacity, loading, Fault code (LCD: I/P ＆O/P voltage＆frequency, Battery voltage)
AudibleBypass, Battery mode, Battery low, Overload, Fault
CommunicationsIntelligent RS232 serial portSoftware support Windows family software, Linux, Sun network operating system, IBM Aix, Compaq True64 SGI IRIX, FreeBSD, HP-UX and MAC
SNMP (Optional)Remote control UPS through SNMP management and Internet
USB (Optional)Windows family software and Mac OS
EnvironmentalOperating Temperature0~40℃
Operating Humidity0～95% (No condensing)
UPS dimensionL*W*H (mm)(UPS main body)482*380*88.4482*448*88.4482*448*88.4

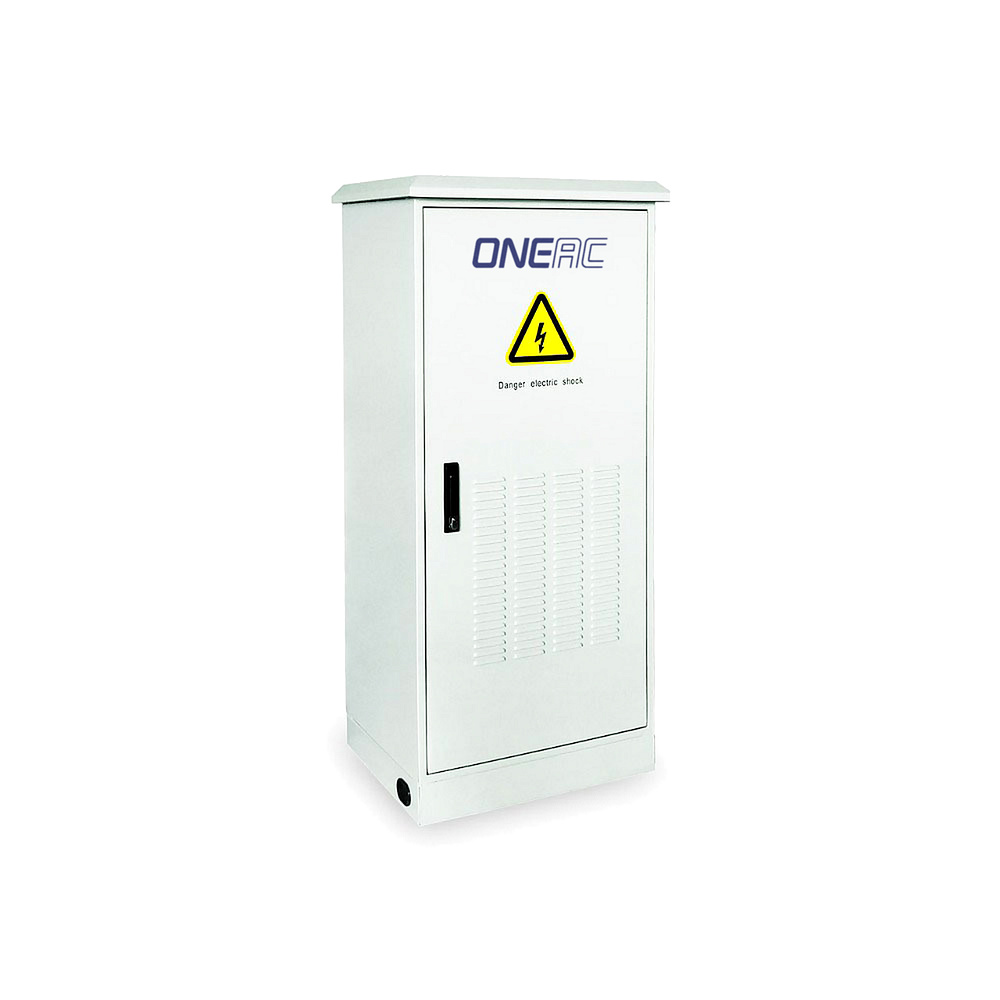

L*W*H (mm)(Cabinet)638*507*775612*525*1511612*525*1511
Weight(kg)Net Weight (No battery)52.00100.00100.00
