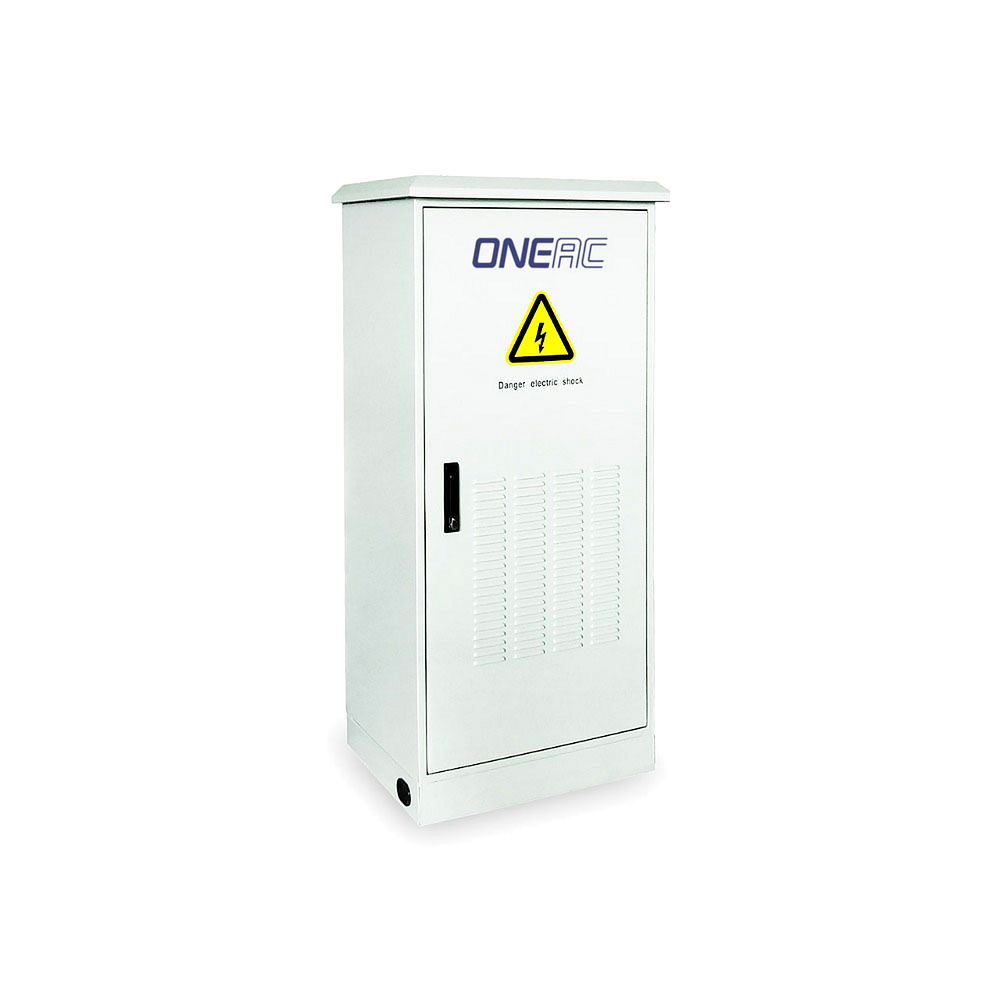

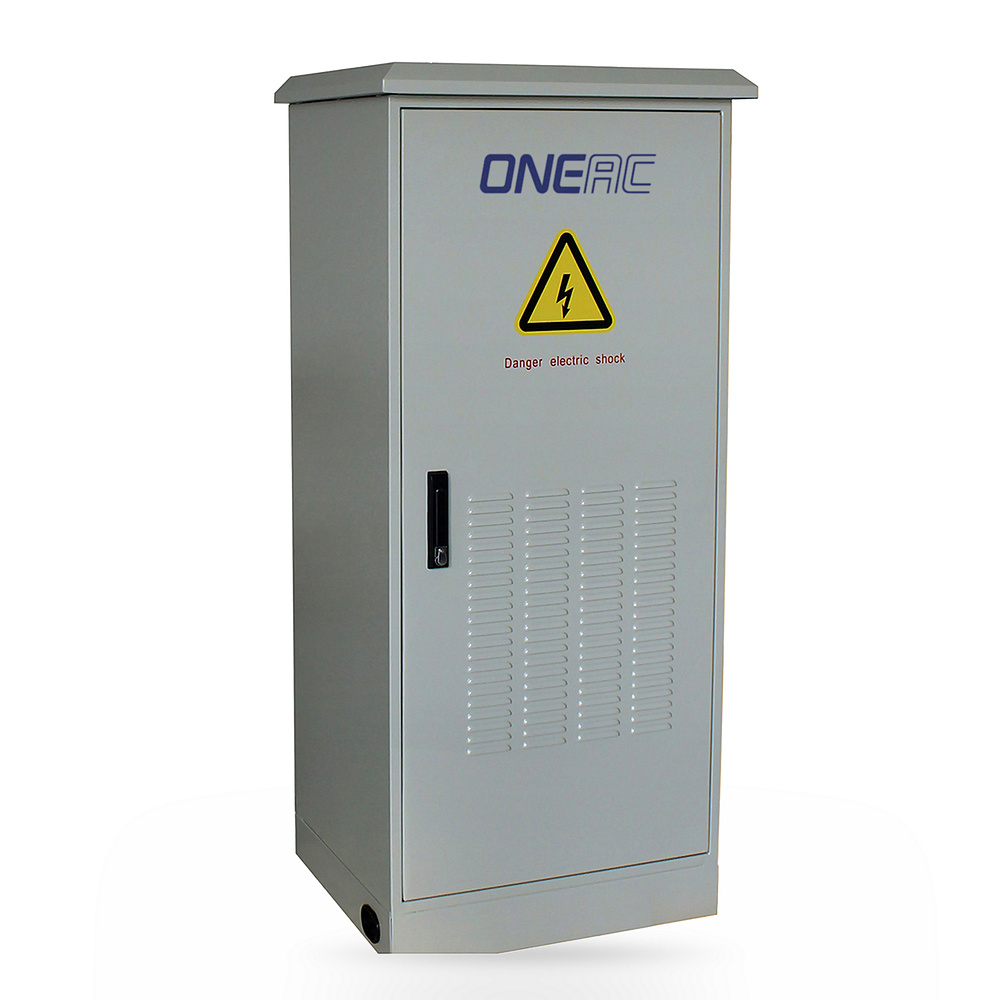

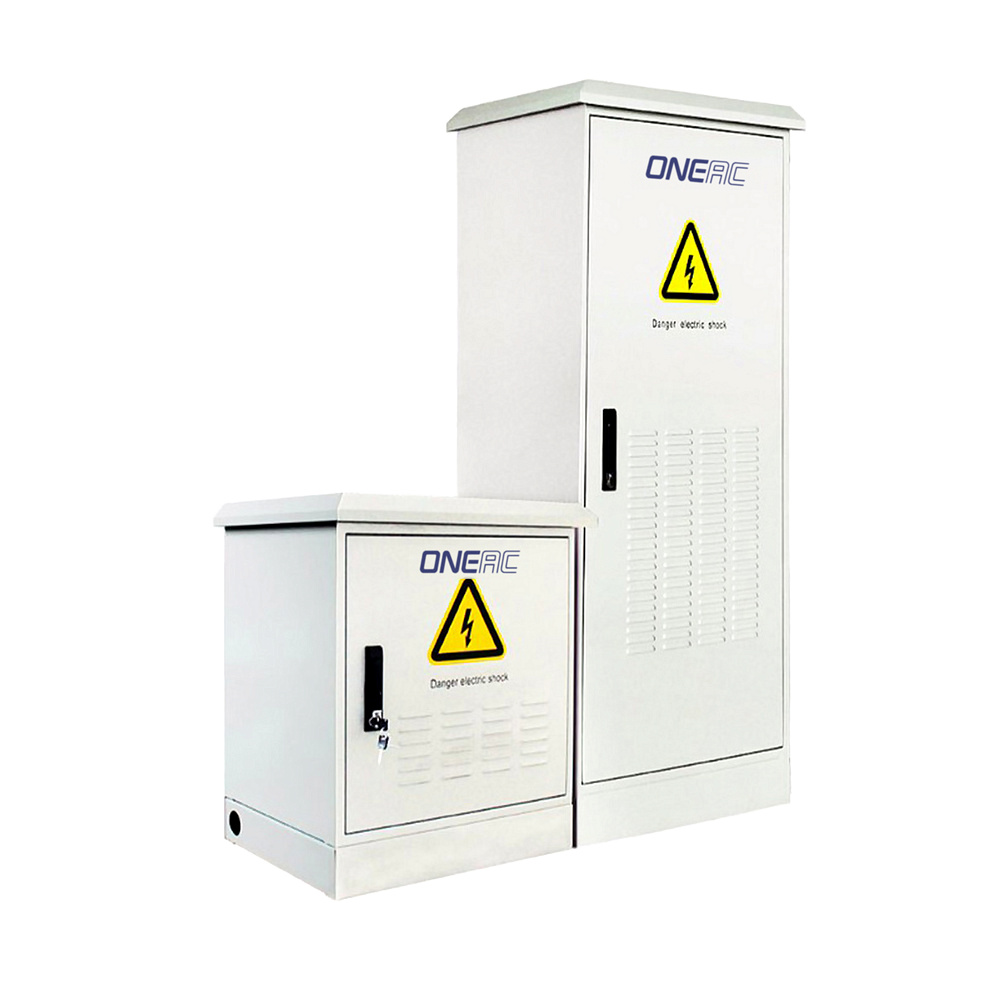

6KVA 10KVA IP65 Outdoor Online UPS
6-10 kVAIP65 rated

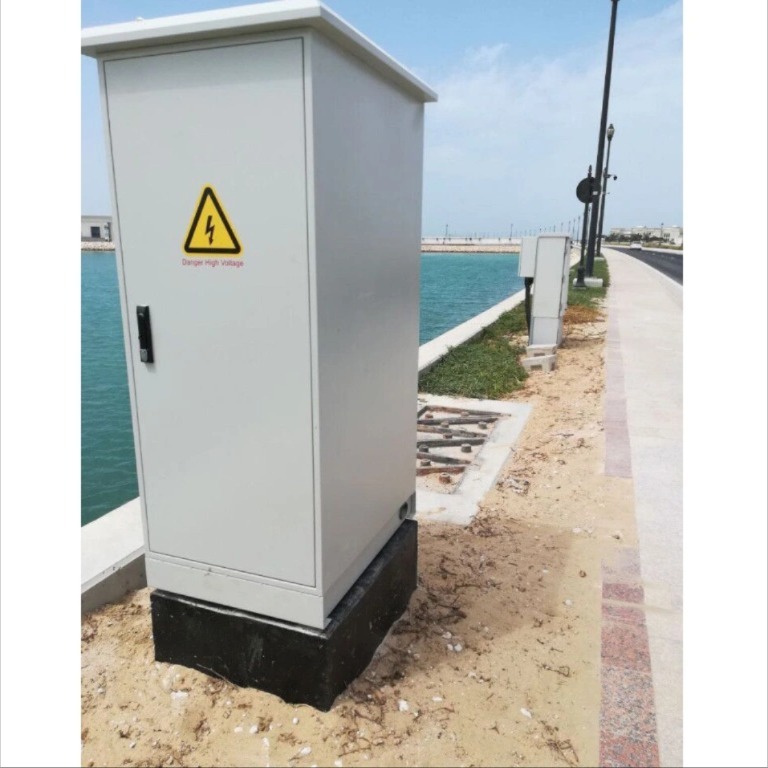

RA series High frequency outdoor UPS is used In suburban district, remote road or mountain, severe environment such as areas with high temperature(50℃), severe dust, moisture, rain, mist erosion, poor grid power quality(voltage durative higher than 260V or less than 160V, Frequency abnormal change)
- Provides a pure uninterrupted AC sine wave power supply for the outdoor communication / network equipment.
- The use of high temperature, anti cold, salt spray, anti-corrosion, anti dust, waterproof, lightning protection design.
- Advanced MCU micro processor control Technology, ensure long life reliability.
- Excellent Protection against over voltage, overload, over current, overcharge and so on.
- Strong anti-jamming capacity, Lightning, surge, short-circuit, network/fax/modem surge protection. Input L and N lines reverse wiring detection.
All features (10)
- DC start function, input RFC reuses function.
- Humanized bypass output adjustable.
- Available to work with generators.
- RS232 intelligent communication monitoring.
- AS-400 Dry contact and SNMP cars remote intelligent control.
Specifications
| Model | RA6KL | RA10KL | |
|---|---|---|---|
| Capacity | VA/W | 6000VA/4800W | 10000VA/8000W |
| Input | Nominal Voltage | 110/115/120VAC or 200/220/230/240VAC 200/208/220/230/240VAC | |
| Voltage Range | 125～275VAC | ||
| Power Factor | ≥0.97 | ||
| Frequency Range | 50Hz:46~54Hz; 60Hz:56~64Hz | ||
| Output | Voltage | 200/208/220/230/240(1±1%)VAC | |
| Frequency | 50/60Hz (Adjustable); 50Hz AC Mode: Follow AC Mode (AC Range 46~54Hz); Battery Mode: 50Hz (1±0.2%) 60Hz AC Mode: Follow AC Mode (AC Range 56~64Hz); Battery Mode: 60Hz (1±0.2%) | ||
| Wave Form | Pure sine wave | ||
| Power Factor | 0.8 | ||
| Harmonic Distortion | ≤2% THD (Linear load) ≤6% THD (Non-Linear load) | ||
| Overload Capacity | Load ＜105% work consistant; 105%＜load ＜125% 1min; 125%＜load ＜135% 30sec;＞135% 0.5sec | ||
| Current Crest Ratio | 3:1 | ||
| Connections | Terminal block | ||
| Efficiency | Battery Mode | 87% | |
| AC Mode | 88% | ||
| Battery | Type | Sealed free maintenance lead acid battery | |
| Nominal DC voltage | 192VDC | 192VDC | |
| Stansard Battery Cabinet | 16*38AH | 16*38AH | |
| Backup Time (Full Load) | Depens on the capacity of internal battery bank (24AH,38AH optional) | ||
| Charge Current (Max) | 2.0A | 2.0A | |
| Charge Voltage (VDC) | 219.5V±1.1%VDC | 219.5V±1.1%VDC | |
| Recharge Time | Depends on the capacity of internal battery bank | ||
| Bypass | Automatic Transfer | On overload and UPS failure | |
| Before UPS Power-on | YES | ||
| Transfer Time | 0 ms(from imain to battery and vice versa); Less than 4ms from inverter to bypass and vice versa | ||
| indicators | LCD Display | UPS status, Battery capacity, loading, Fault code (LCD: I/P ＆O/P voltage＆frequency, Battery voltage) | |
| Audible | Bypass, Battery mode, Battery low, Overload, Fault | ||
| Communications | Intelligent RS232 serial port | Software support Windows family software, Linux, Sun network operating system, IBM Aix, Compaq True64 SGI IRIX, FreeBSD, HP-UX and MAC | |
| SNMP (Optional) | Remote control UPS through SNMP management and Internet | ||
| USB (Optional) | Windows family software and Mac OS | ||
| Environmental | Operating Temperature | 0~40℃ | |
| Operating Humidity | 0～95% (No condensing) | ||
| UPS dimension | L*W*H (mm)(UPS main body) | 632*482*133.4 | 632*482*133.4 |
| L*W*H (mm)(Cabinet) | 718*595*1371 | 718*595*1371 | |
| Weight(kg) | Net Weight (No battery) | 120.00 | 123.00 |
