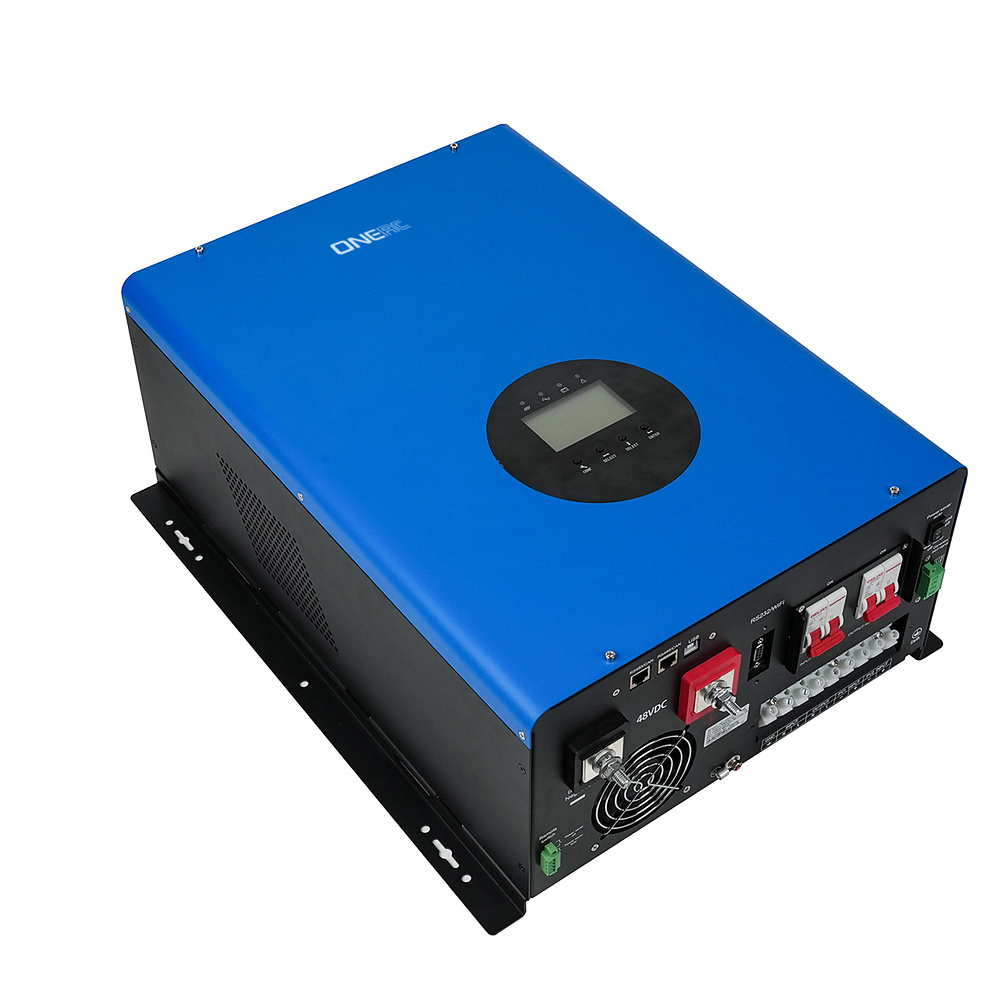

GSIII Split phase Off-Grid Inverter 120/240V 4KW 5KW 6KW
Off-Grid Solar Inverters

GSIII Split phase Off-Grid Inverter 120/240V 4KW 5KW 6KW

4-6 kWSplit phase

Built-in low frequency transformer inverter 120/240Vac Split Phase output 24V 48VDC to 120/240V.

    Ask about this product
    Countrywide delivery 12-month local warranty Installation available
    Specifications
    Model ParametersGSII4000GSII5000GSII6000
    PowerNominal Power4000W5000W6000W
    Surge Rating12000W15000W18000W
    Maximum PV Array Power5000W5000W5000W
    AC InputInput Voltage WaveformPure sine wave/ same as utility or generator input (bypass mode)
    Nominal input VoltageHOT1-HOT2: 240VAC
    Low Line Disconnect180Vac±4%(Normal) or 140Vac±4%(Wide)
    Low Line Re-connect190Vac±4%(Normal) or 150Vac±4%(Wide)
    High Line Disconnect270Vac±4%(Normal) or 270Vac±4%(Wide)
    High Line Re-connect260Vac±4%(Normal) or 260Vac±4%(Wide)
    Max AC input VoltageMax280V
    Frequency50Hz:41-54Hz, 60Hz:51-64Hz
    AC OutputOutput Voltage WaveformSine wave
    Power Factor1.0
    Nominal Output Voltage (V)104-110-115-120/208-220-230-240VAC(optional)

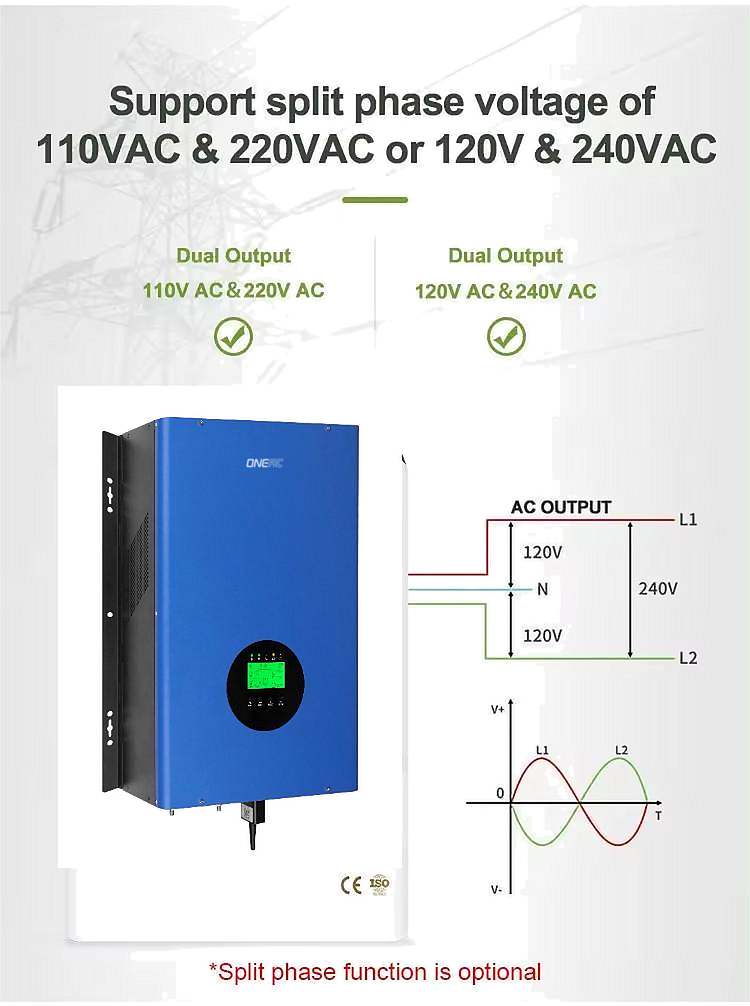

    HOT1-N: 120Vac ±10%rms; HOT2-N: 120Vac ±10%rms; HO1-HOT2: 240Vac ±10%rms
    output phase diifferenceHOT1-N and HOT2-N is 180°; HOT1-N and HOT1-HOT2 is 0°; HOT2-N and HOT1-HOT2 is 180°
    Nominal Output Frequency (Hz)50Hz ± 1Hz, 60Hz ± 1Hz
    AC ChargerNominal Charger Current20A/35A/50A/70A/90A(According to the inverter model) ; adjustable 5 stages charging current;
    Over charge ProtectionBat.V ≥ 31.0VDC for 24V battery, Bat.V ≥ 62.0VDC for 48V battery ； beeps 0.5s every 1s & fault after 60s
    Solar ChargerRated Charge Currentalternative 80A
    PV Input Voltage range30VDC-140VDC for 24V Inverter, 60-240VDC for 48V Inverter
    Max.PV open circuit array voltage150Vdc PV for 24V inverter, 250V PV for 48V inverter
    Charger modeMPPT
    PV Low Voltage Re-connectPV ≥ Bat.V+3V
    PV Low Voltage DisconnectPV ≦ Bat.V
    Efficiency≥ 97%
    Battery VoltageBattery typeLithium/Lead-acid （LifePO battery communication CAN485,Battery awake function,Battery equivalent）
    Nominal DC input Voltage24/48VDC
    Low Battery Alarm21VDC±0.6VDC for 24VDC
    42VDC±1.2VDC for 48VDC
    Low DC input shut & down20VDC±0.6VDC for 24VDC
    40VDC±1.2VDC for 48VDC
    High DC input Alarm & Fault32VDC±0.6VDC for 24VDC
    64VDC±1.2VDC for 48VDC
    EfficiencyEfficiency(Battery Mode)≥ 87%
    Efficiency (Line Mode)＞ 98%
    Transfer TimeAC tO DC20ms(max)
    DC tO AC15ms(max)
    System ParameterOver-Load Protection110% ＜ load ＜ 150% ， beeps 0.5s every 1s ， and Fault after 60s off the output ， load ＞ 150% ， beeps 0.5s every 1s ， and Fault after 20s
    Output Short Circuit ProtectionYES
    Surge Rating1:3(VA)
    ProtectionsLow battery, over charging, over load, over temp
    IndicatorsLED+LCD Display
    General SpecificationsOperating Temperature Range0 ℃～ 40 ℃
    Storage Temperature﹣ 15 ℃～ 60 ℃
    Operation humidity5% to 95%(non-condensing)
    Audible Noise60dB max
    coolingForced air, variable speed fan
    Dimension(L*W*H)530*400*190mm
    Net Weight(kg)30kg35.5kg39kg
