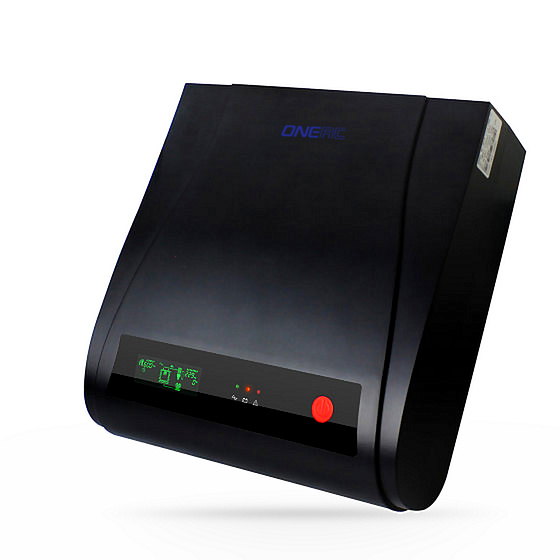

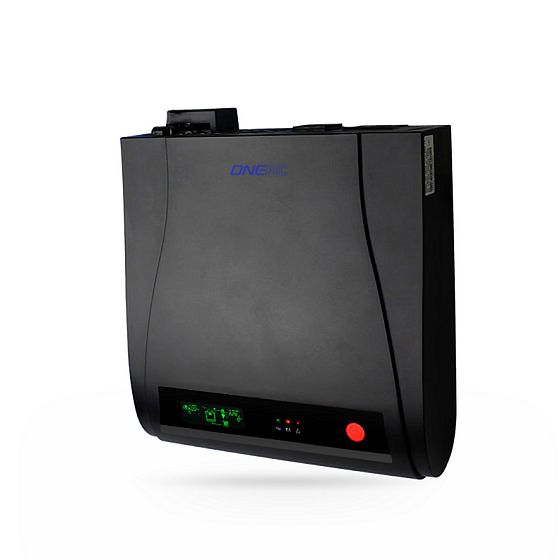

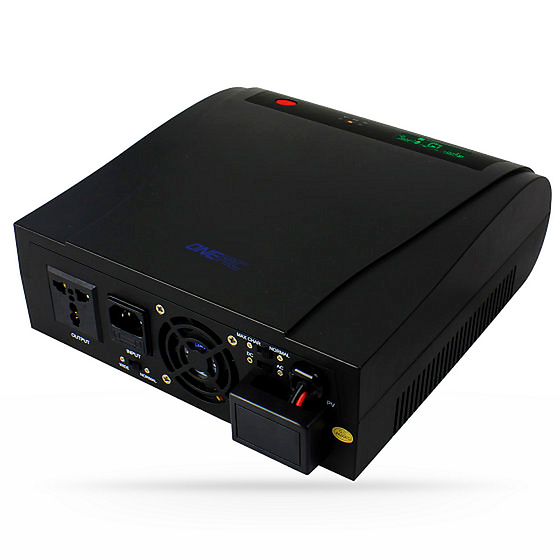

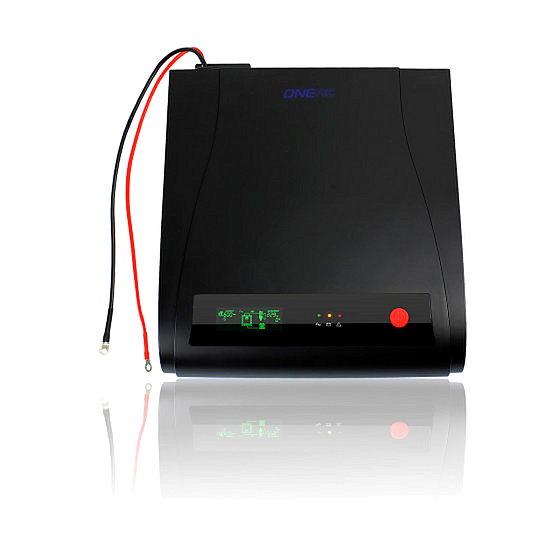

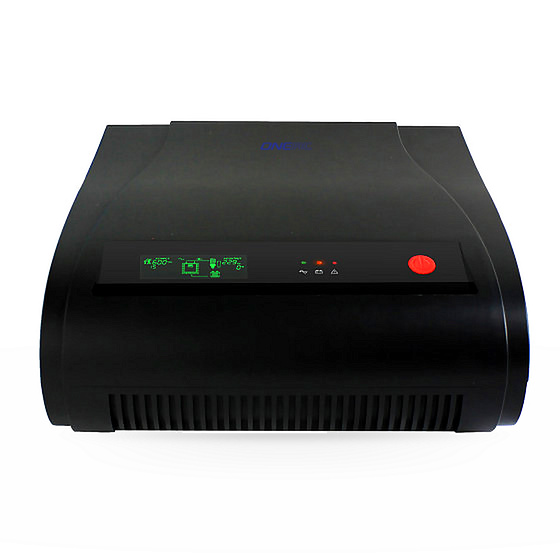

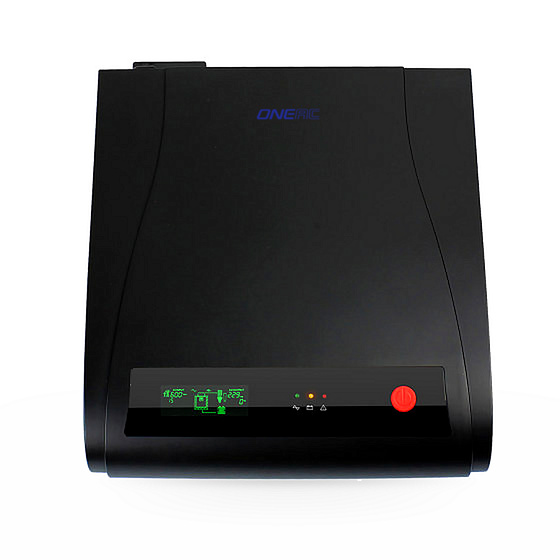

HD Plus Inverter Series Off Grid Solar Inverter
Off-Grid Solar Inverters

HD Plus Inverter Series Off Grid Solar Inverter

4. Selectable Input voltage ranges/AC charging current/ AC or solar charger priority.

    Ask about this product
    Countrywide delivery 12-month local warranty Installation available
    Specifications
    ModelHD Plus1K-12HD Plus2K-24
    AC InputNominal Power1KVA/720W2KVA/1300W
    Input Voltage Waveformsinusoidal(utility or generator)
    Nominal input Voltage230VAC
    Selectable Voltage Range165-270Vac±4%(Narrow Range) , 85-270Vac±4%(Wide Range)
    Max AC input VoltageMax:270VAC
    Frequency50Hz,,60Hz
    AC OutputOutput Voltage WaveformModified sine wave
    Voltage Regulation (Batt.Mode)230VAC (+10% / -18%)
    Nominal Output Frequency (Hz)50Hz or 60Hz (Auto detection)
    Transfer Time15ms Typical, 20ms Max.
    Solar ChargerCharger modePWM
    Maximun PV Array Power450W900W
    Optimal Work Voltage Rang15VDC-18VDC30VDC-36VDC
    MAX. PV input Voltage55VDC
    MAX. PV input Current40Amp
    AC ChargerCharging Algorithma3-step charging
    Nominal Charger Current15 Amp or 20Amp Selectable10Amp
    Floating Charging Voltage13.7VDC27.4VDC
    Over charge Protection16VDC32VDC
    EfficiencyEfficiency (Battery Mode)＞87%
    Efficiency (Line Mode)＞96%
    Battery VoltageNominal DC input Voltage12VDC24VDC
    Low Battery Alarm10.5VDC±0.3VDC21VDC±0.6VDC
    Low DC input shut-down10VDC±0.3VDC20VDC±0.6VDC
    High DC input Alarm & Fault16VDC±0.3VDC32VDC±0.6VDC
    System ParameterProtectionsLow battery, over charging, over load, over temp
    IndicatorsLCD+LED Display
    Over-Load Protection1min Load >110%,20s Load >120%,0s Load >150%
    General SpecificationsOperating Temperature Range0℃ to 40℃
    Storage Temperature﹣15℃～60℃
    coolingForced air,variable speed fan
    Dimension L*W*H (mm)276.7*245*97mm
    Net Weight(kg)2.6kg2.7kg
