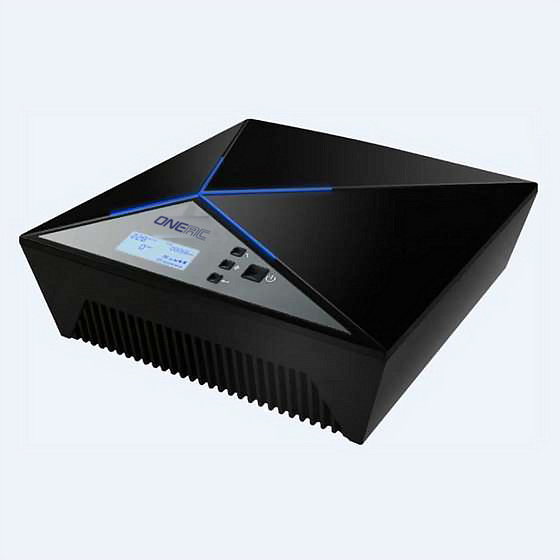

HDP series Off Grid Solar Inverter
Off-Grid Solar Inverters

HDP series Off Grid Solar Inverter

4. Selectable Input voltage ranges/AC charging current/ AC or solar charger priority.

    Ask about this product
    Countrywide delivery 12-month local warranty Installation available
    Specifications
    MODELHDP 1200-12HDP 1200-12HDP 2000-24HDP 2200-24
    LINE MODE
    INPUTNominal Voltage230VAC
    Voltage Range170-280VAC (Narrow Range)
    90-280VAC (Wide Range)
    Normal Frequency50Hz or 60Hz
    OUTPUTVoltage230VAC
    FrequencyFollowing the Utility
    Output WaveformFollowing the Utility
    EFFICIENCY>95%(full R load, battery full charged)
    TRANSFER TIME15ms Typical, 40ms Max.
    BACKUP MODE
    OUTPUTVoltage230VAC(+10%/-18%)
    Frequency50Hz or 60Hz(Auto detection)
    Output WaveformModified Sine-wave
    EFFICIENCY>80%
    OVERLOAD PROTECTION1min@> 110%, 20s@>120%, 0s@>150%.
    PROTECTIONDischarge, over-charged, over-loading, over-temperature,short-circuit protection
    BATTERY CHARGER (powered by AC)
    CHARGING ALGORITHM3-step charging
    AC CHARGING MODE0A/5A/10A/15A/20A selectable0A/5A/10A/15A selectable
    FLOATING CHARGING VOLTAGE13.7V27.4V
    OVERCHARGING VOLTAGE16V32V
    SOLAR BATTERY CHARGER
    MAX. PV INPUT POWER450W900W
    MAX CHARGING CURRENT40Amp
    NOMINAL BATTERY VOLTAGE12V24V
    OPTIMAL WORK16V~18V32V~36V
    VOLTAGE RANGE
    MAX. PV INPUT VOLAGE55V
    GENERAL
    PHYSICALDimension (DxWxH)280mm(D)*250mm(W)*95mm(H)
    Net Weight (kg)2.162.462.382.38
    ENVIRONMENTOperating environment0- 50°C, 5%-90 % relative humidity (non-condensing)
    Storage Environment-15°C to 55°C, 5% to 95% humidity (non-condensing)
    Noise LevelLess than 50dB
