Off-Grid Solar Inverters

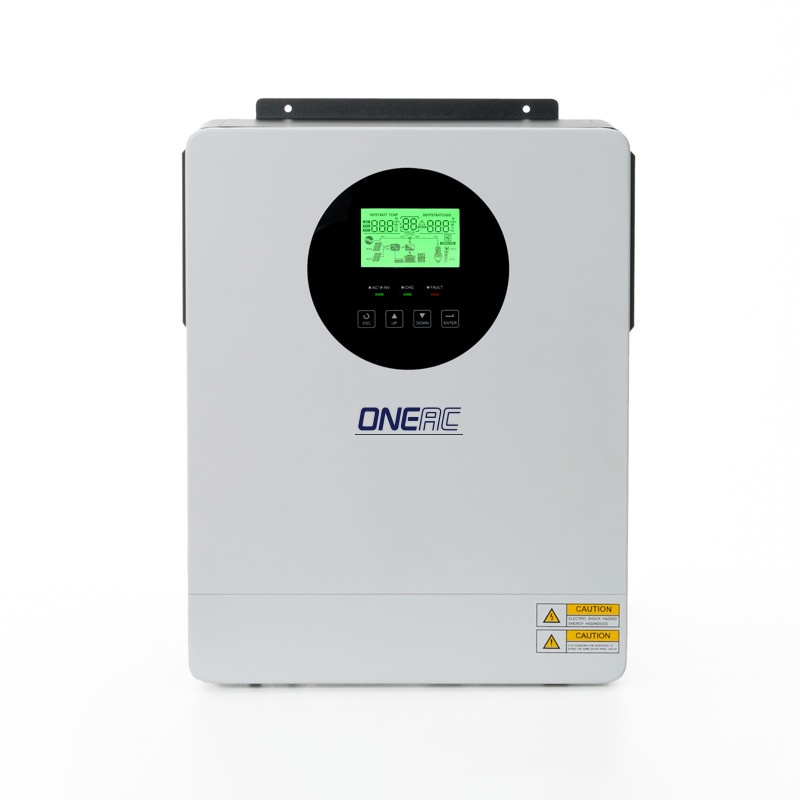

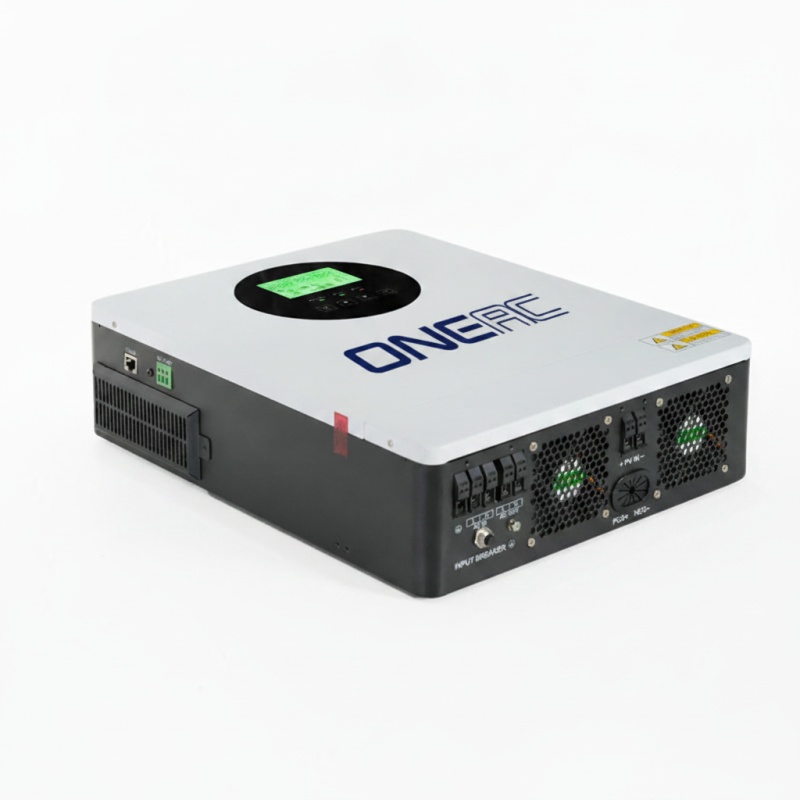

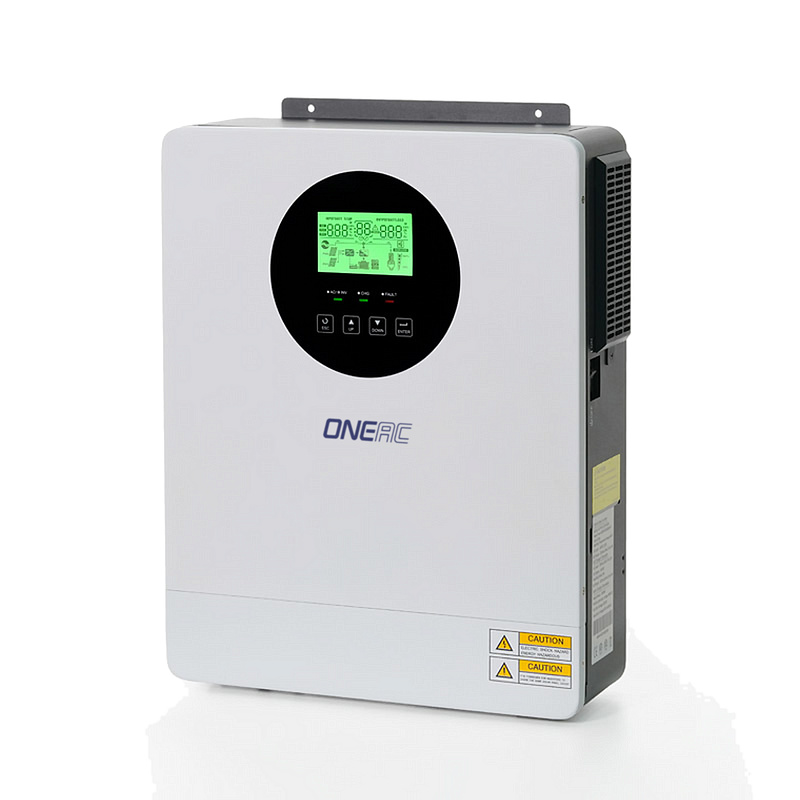

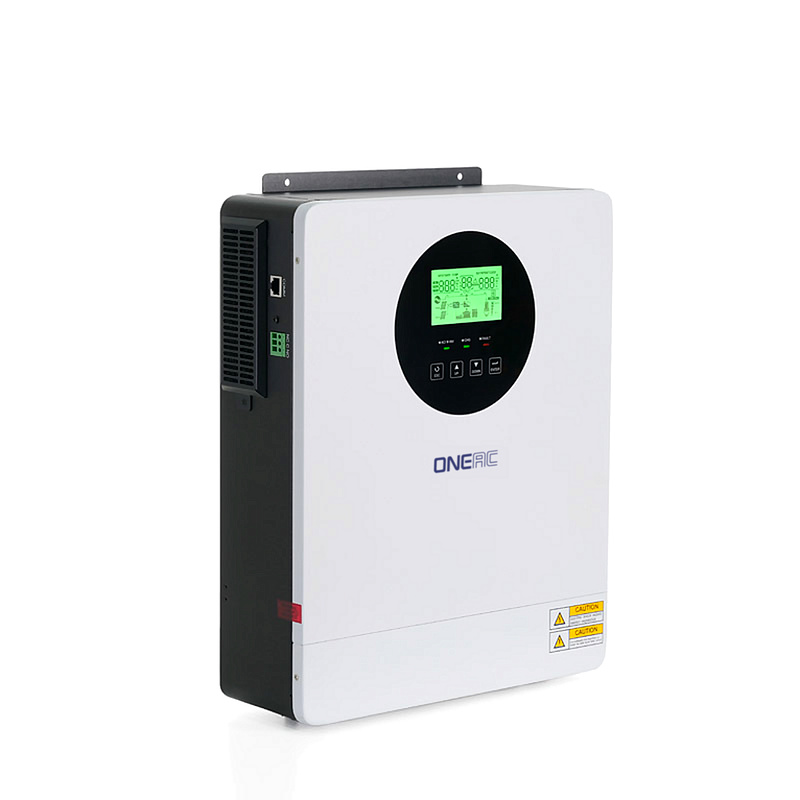

PVG 3.5KW 5.2KW 5.5KW Off Grid Micro Inverter
3.5-5.5 kW
PVG is equipped with MPPT 80A solar charge controller to maximize and regulate DC power from the solar array for charging the
- Pure sine wave solar inverter
- Output power factor 1.0
- High PV input voltage range(120v-450v)
- Built-in 80A MPPT solar charger
- Battery independent design
All features (9)
- Support lithium iron battery
- Battery equalization function to optimize battery performance and extend lifecycle
- Built-in anti-dusk kit for harsh environment
- Operation with battery connected:Solar Power and AC Power available/Solar Power and AC Power not available
Specifications
| MODEL | PVG 3500-24 | PVG 5200-48 | PVG 5500-48 |
|---|---|---|---|
| Rated Power | 3500VA/3500W | 5200VA/5200W | 5500VA/5500W |
| INPUT | |||
| Voltage | 230VAC | ||
| Selectable Voltage Range | 170- 280VAC (For Personal Computers) | ||
| 90- 280VAC (For Home Appliances) | |||
| Frequency Range | 50Hz/60Hz(Auto sensing) | ||
| OUTPUT | |||
| AC Voltage Regulation(Batt.Mode) | 230VAC±5% | ||
| Surge Power | 7000VA | 10400VA | 11000VA |
| Efficiency(Peak) | 90%~93% | ||
| Transfer Time | 10ms (For Personal Computers) | ||
| 20ms (For Home Appliances) | |||
| Waveform | Pure sine wave | ||
| BATTERY | |||
| Battery Voltage | 24VDC | 48VDC | 48VDC |
| Floating Charge Voltage | 27VDC | 54VDC | 54VDC |
| Overcharge protection | 33VDC | 63VDC | 63VDC |
| SOLAR CHARGER & AC CHARGER | |||
| Maximum PV Array Open Circuit Voltage | 500VDC | 500VDC | 500VDC |
| Maximum PV Array Power | 4000W | 5500W | 5500W |
| MPPT Operating Voltage Range | 120~450VDC | 120~450VDC | 120~450VDC |
| Maximum Solar Charge Current | 100A | 100A | 100A |
| Maximum AC Charge Current | 60A | 80 A | 80 A |
| Maximum Charge Current | 100A | 100A | 100A |
| PHYSICAL | |||
| Dimension, L×W×H(mm) | 425x320x115 | ||
| Net Weight(kg) | 9.5 | 10.3 | 10.5 |
| Communication Interface | RS232 | ||
| ENVIRONMENT | |||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | ||
| Operating Temperature | -10°C to 50°C | ||
| Storage Temperature | -15°C to 60°C | ||
