Online UPS Systems

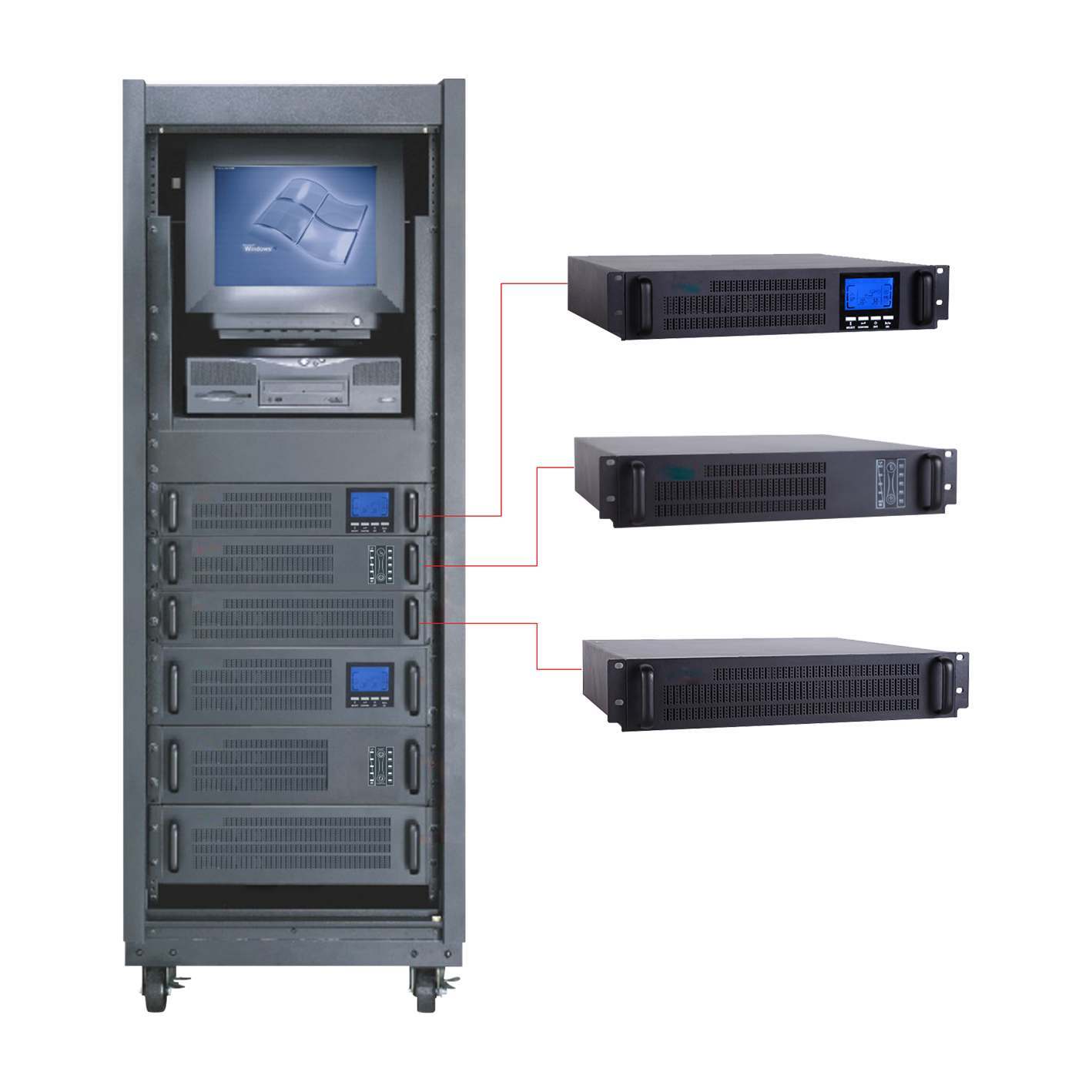

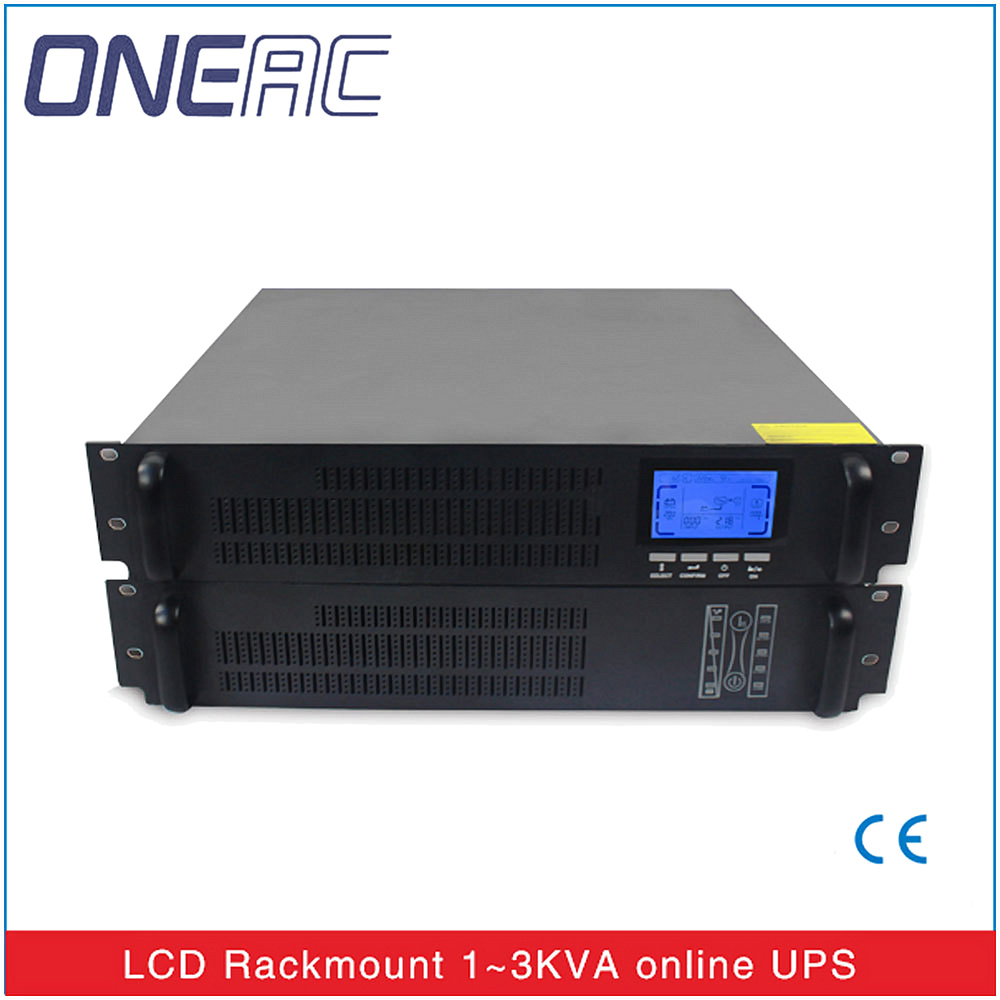

1-3KVA Rack mout Online UPS
3 kVA
RM series high frequency online UPS is specially designed for servers, data-center critical network devices, sensitive electronic equipment, telecom, bank, hospital, bureau, traffic, public security, ATM and so on.
Specifications
| Model | RM1K-C | RM1KL-C | RM2K-C | RM2KL-C | RM3K-C | RM3KL-C | |
|---|---|---|---|---|---|---|---|
| Rated Power | VA/W | 1KVA/800W | 1KVA/800W | 2KVA/1600W | 2KVA/1600W | 3KVA/2400W | 3KVA/2400W |
| Input | Phase | Single Phase with Ground | |||||
| Nominal Voltage | 110/115/120Vac or 220/230/240Vac | ||||||
| Voltage Range | 60-138VAC or 115 ~ 300VAC | ||||||
| Frequency Range | 46 ~ 54Hz(default), user adjustable within 40~60Hz | ||||||
| Power Factor | 0.97 | ||||||
| Connection | IEC320-10A inlet | IEC320-16A inlet | |||||
| Output | Phase | Single Phase | |||||
| Voltage | 110/115/120Vac or 220/230/240VAC ± 2% | ||||||
| Frequency | 46~54Hz or 50Hz ± 0.2Hz (Line mode) | ||||||
| 50Hz ± 0.2Hz ( Battery mode) | |||||||
| Waveform | Pure Sine Wave | ||||||
| Overload Capability | 108%~150% for 30 sec., 150% for 300 ms | ||||||
| Current Crest Ratio | 3:01 | ||||||
| Connections | IEC320-10A *4 | IEC320-10A*4 | IEC320-10A*4 | IEC320-10A*4 | IEC320-10A and Terminal Block | IEC320-10A and Terminal Block | |
| Bypass | Automatic Transfer | on overload and UPS failure | |||||
| Before UPS Power-on | Default “NO”, user adjustable to “YES” | ||||||
| Voltage Range | 80~264VAC (Default), user adjustable within 80~286VAC | ||||||
| Transfer Time | 0 ms; less than 4 ms from inverter to bypass and vice versa | ||||||
| LED indicators | Load level / Battery level, Battery , Utility Power, Inverter, Bypass, Overload, Fault | ||||||
| Audible Alarm | Bypass, On battery mode, Battery low, Overload, Fault | ||||||
| Communications | RS-232 Serial Interface | ||||||
| Intelligent Slot; | |||||||
| OPTIONS: WEBPOWER SNMP/WEB card, AS400 card or WinPower CMC) | |||||||
| Network Surge Protection | RJ45 I/O port available for network or Fax/Modem | ||||||
| Environmental | Operating Temperature | 0 ~ 40°C | |||||
| Operating Humidity | 20 ~ 90% non-condensing | ||||||
| Main Unit | Net Weight (Kg) | 13.90 | 7.50 | 28.50(3U) 8.50(2U) | 8.90 | 29.60(3U) 10.00(2U) | 10.50 |
| Dimensions (LxWxH) mm | 483*467* 88 (2U) | 483*467*88 (2U) 484*634*134 (3U internal batteries) | 483*467*88 (2U) | 483* 467*88 (2U) 484*634*134 (3U internal batteries) | 483* 467*88 (2U) | ||
| Battery Pack | Type | Internal Batteries | External Battery Pack | External Battery Pack | |||
| Nominal DC Voltage | 36VDC | 36VDC | 96VDC | ||||
| Battery Numbers & Capacity | 3pcs*12V 7AH | External Battery Pack | 8pcs*12V 7AH | External Battery Pack | 8pcs*12V 7AH | External Battery Pack | |
| Backup Time (Full load) | 5 min | Depending on the capacity of external battery packs | 9 min (with1BP) | Depending on the capacity of external battery packs | 5 min (with1BP) | Depending on the capacity of external battery packs | |
| Recharge Time | 5hrs to 90% | 5hrs to 90% | 5hrs to 90% | ||||
| Charging Current (Max.) | 1.0A | 5A/7A±1A | 1.0A | 5A/7A±1A | 1.0A | 5A/7A±1A | |
| Charging Voltage | 41.1VDC±0.4 | 110VDC±0.4 | |||||
| Net Weight (Kg) | --- | --- | 25.30 | --- | 25.30 | --- | |
| Dimensions (LxWxH) mm | --- | --- | 482*467*88 (2U) | --- | 482*420*88 (2U) | --- | |
