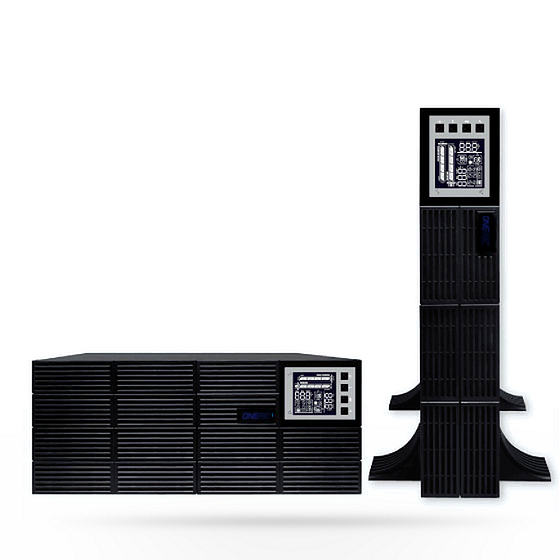

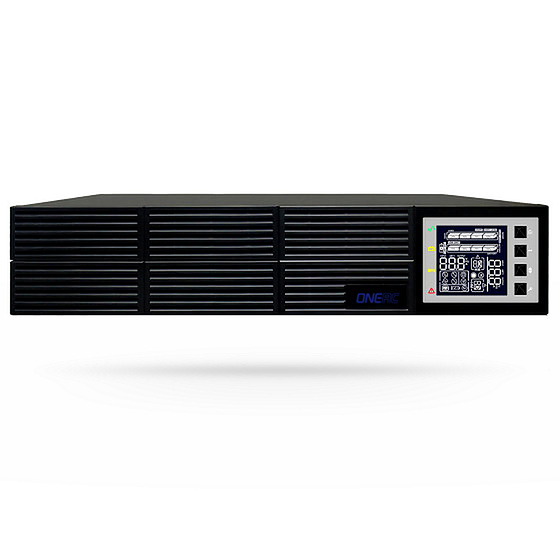

RT1KVA-10KVA Online UPS High Frequency UPS
1-10 kVA
RT series high frequency online UPS onduleur is specially designed for servers, data-center critical network devices, sensitive electronic equipment, telecom, bank, hospital, bureau, traffic, public security, ATM and so on.
Specifications
| Model | RT1K-C | RT1KL-C | RT2K-C | RT2KL-C | RT3K-C | RT3KL-C | RT6K-C | RT6KL-C | RT10K-C | RT10KL-C | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Power | VA/W | 1KVA/800W | 1KVA/800W | 2KVA/1600W | 2KVA/1600W | 3KVA/2400W | 3KVA/2400W | 6KVA/4800W | 6KVA/4800W | 10KVA/8KW | 10KVA/8KW |
| Input | Phase | Single Phase with Ground | |||||||||
| Nominal Voltage | 200/208/220/230/240VAC | ||||||||||
| Voltage Range | 110 ~ 300VAC | 120~ 275VAC | |||||||||
| Frequency Range | 50Hz:46 ~ 54Hz 60Hz:56 ~ 64Hz | 40 ~ 70Hz | |||||||||
| Power Factor | 0.98 | 0.99 | |||||||||
| Connection | IEC320-10A inlet | IEC320-16A inlet | Terminal Block | ||||||||
| Output | Phase | Single Phase | |||||||||
| Voltage | 200/208/220/230/240VAC ± 1% | ||||||||||
| Frequency | 50/60Hz adjustable,46~54Hz (Line mode) | ||||||||||
| 50Hz ± 0.2%Hz ( Battery mode) 60Hz ± 0.2%Hz ( Battery mode) | |||||||||||
| Waveform | Pure Sine Wave | ||||||||||
| Overload Capability | 105%～150% 45S～25S then turn to bypass output ; 150%～200% 25s～300ms then turn to bypass output; ≥200% 200ms then turn to bypass output. | Load﹤105% work consistant;105%﹤load﹤125% 1min;125%﹤load﹤150% 30sec | |||||||||
| Current Crest Ratio | 3:1 | ||||||||||
| Connections | IEC320 -10A * 6 | IEC320 -10A *6 | IEC320 -10A * 8 | IEC320 -10A *8 | IEC320 -10A *8 | IEC320 -10A *8 | Terminal Block | ||||
| Bypass | Automatic Transfer | on overload and UPS failure | |||||||||
| Before UPS Power-on | Default “ON”, user adjustable to “YES” | Yes | |||||||||
| Transfer Time | 0 ms; less than 4 ms from inverter to bypass and vice versa | Zero | |||||||||
| LCD+LED display | UPS status, Battery capacity, loading, Fault code | ||||||||||
| Audible Alarm | Bypass, On battery mode, Battery low, Overload, Fault | ||||||||||
| Communications | Intelligent RS232 serial port: Software support Windows family software, Linux, Sun network operating system, IBM Aix, Compaq True64 SGI IRIX, FreeBSD, HP-UX and MAC | ||||||||||
| SNMP(Optional) Remote control UPS through SNMP management and Internet | |||||||||||
| USB(Optional) Windows family software and Mac OS | |||||||||||
| Network Surge Protection | RJ45 I/O port available for network or Fax/Modem | ||||||||||
| Environmental | Operating Temperature | 0 ~ 40°C | |||||||||
| Operating Humidity | 20 ~ 90% non-condensing | ||||||||||
| Main Unit | NetWeight(Kg) | 11.00 | 7.50 | 8.50(2U) | 8.90 | 10.00(2U) | 10.50 | 13.80 | 14.30 | 15.10 | 15.80 |
| Dimensions (LxWxH) mm | 440*375* 89 (2U) | 440*438* 89 (2U) | 440*438* 89 (2U) | 440*438* 89 (2U) | 440*438* 89 (2U) | 520*440*134(3U) | |||||
| Battery Pack | Type | Internal Batteries | External Battery Pack | External Battery Pack | |||||||
| Nominal DC Voltage | 24VDC | 36VDC | 48VDC | 48VDC | 72VDC | 96VDC | 192VDC | ||||
| Battery Numbers & Capacity | 2pcs *12V 9AH | External Battery Pack | 4pcs *12V 9AH | External Battery Pack | 6pcs *12V 9AH | External Battery Pack | 16pcs *12V 7AH | External Battery Pack | 16pcs *12V 7AH | External Battery Pack | |
| Backup Time (Full load) | 5 min | Depending on the capacity of external battery packs | 9 min (with 1 BP) | Depending on the capacity of external battery packs | 5 min (with 1 BP) | Depending on the capacity of external battery packs | 4 min | Depending on the capacity of external battery packs | 3 min | Depending on the capacity of external battery packs | |
| Recharge Time | 5hrs to 90% | 5hrs to 90% | 5hrs to 90% | 7hrs to 90% | 7hrs to 90% | ||||||
| Charging Current (Max.) | 1.0A | 5A/7A±1A | 1.0A | 5A/7A±1A | 1.0A | 5A/7A±1A | 1.0A | 4.5A | 1.0A | 4.5A | |
| Charging Voltage | 27.4VDC±0.2 | 41.4VDC±0.4 | 54.8VDC±0.4 | 54.8VDC±0.4 | 82.2VDC±0.6 | 110VDC±0.4 | 218.40VDC±2 | ||||
