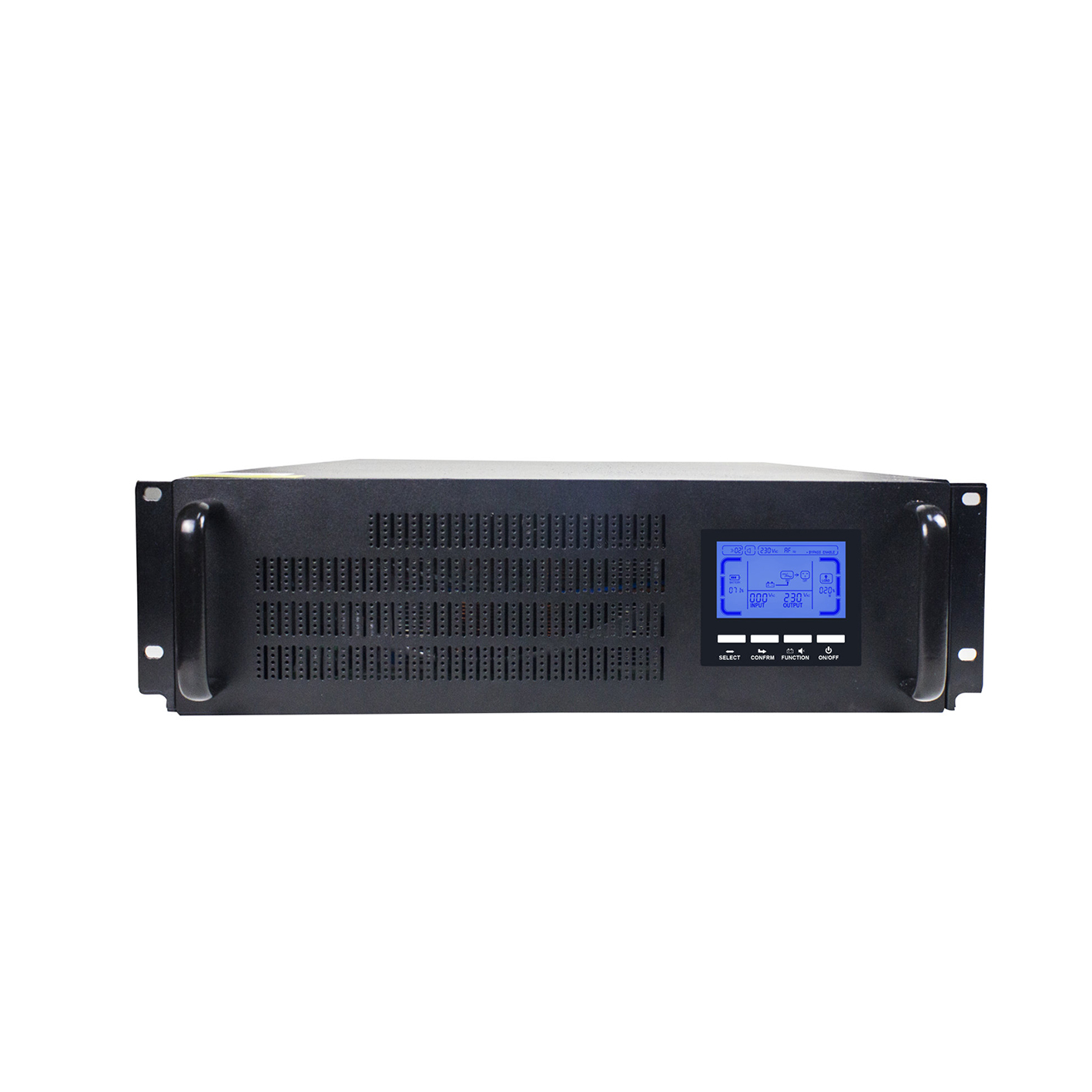

6-10KVA Rack mout Online UPS
10 kVA

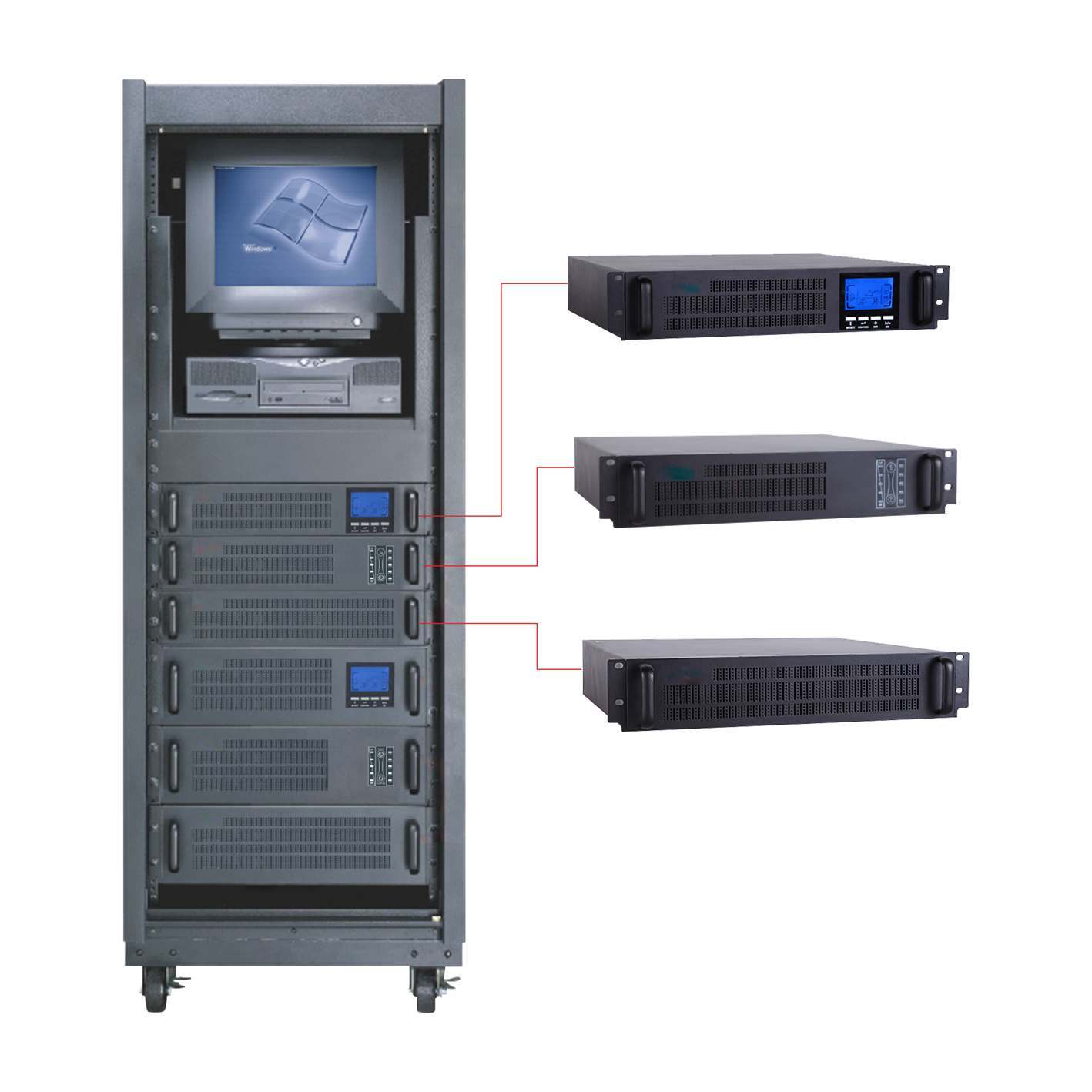

RM series rack mount high frequency pure sine wave online UPS is specially designed for servers, data-center critical network devices, sensitive electronic equipment, telecom, bank, hospital, bureau, traffic, public security, ATM and so on.
Specifications
| Model | RM6K-C | RM6KL-C | RM10K-C | RM10KL-C | |
|---|---|---|---|---|---|
| Rated Power | VA/W | 6KVA/4800W | 6KVA/4800W | 10KVA/8KW | 10KVA/8KW |
| Input | Phase | Single Phase with Ground | |||
| Nominal Voltage | 220/230/240Vac | ||||
| Voltage Range | 176 ~ 276VAC | ||||
| Frequency Range | 46 ~ 54Hz | ||||
| Power Factor | 0.98 | ||||
| Connection | Terminal Block | ||||
| Output | Phase | Single Phase | |||
| Voltage | 110/115/120Vac or 220/230/240VAC± 1% | ||||
| Frequency | 46~54Hz (Line mode) | ||||
| 50Hz ± 0.05Hz ( Battery mode) | |||||
| Waveform | Pure Sine Wave | ||||
| Overload Capability | 105%~130% for 10 min.,130% for 1 min. | ||||
| Current Crest Ratio | 3:01 | ||||
| Connections | IEC320-10A * 4 and Terminal Block | ||||
| Bypass | Automatic Transfer | on overload and UPS failure | |||
| Before UPS Power-on | Yes | ||||
| Voltage Range | 176 ~ 261VAC | ||||
| Transfer Time | Zero | ||||
| LED indicators | Load level / Battery level, Battery , Utility Power, Inverter, Bypass, Overload, Fault | ||||
| Audible Alarm | Bypass, On battery mode, Battery low, Overload, Fault | ||||
| Communications | RS-232 Serial Interface | ||||
| Intelligent Slot; | |||||
| OPTIONS: WEBPOWER SNMP/WEB card, AS400 card or WinPower CMC) | |||||
| Network Surge Protection | RJ45 I/O port available for network or Fax/Modem | ||||
| Environmental | Operating Temperature | 0 ~ 40°C | |||
| Operating Humidity | 20 ~ 90% non-condensing | ||||
| Main Unit | Net Weight (Kg) | 17.70 | 18.30 | 19.70 | 20.30 |
| Dimensions (LxWxH) mm | 484*653*134 (3U) | ||||
| Battery Pack | Type | External Battery Pack | |||
| Nominal DC Voltage | 192VDC | ||||
| Battery Numbers & Capacity | 16pcs*12V 7AH | External Battery Pack | 16pcs*12V 7AH | External Battery Pack | |
| Backup Time (Full load) | 4 min | Depending on the capacity of external battery packs | 3 min | Depending on the capacity of external battery packs | |
| Recharge Time | 5hrs to 90% | 5hrs to 90% | |||
| Charging Current (Max.) | 2A | 5A/7A±1A | 2A | 5A/7A±1A | |
| Charging Voltage | 219.50VDC±1% | ||||
| Net Weight (Kg) | 44.50 | --- | 44.50 | --- | |
| Dimensions (LxWxH) mm | 484*621*134 (3U) | --- | 484*582*134 (3U) | --- | |
