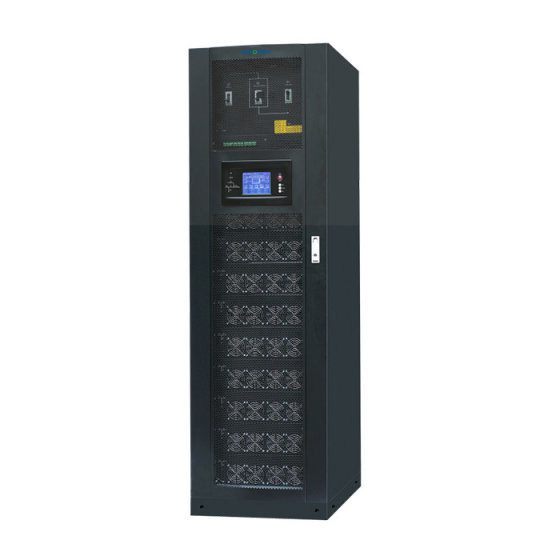

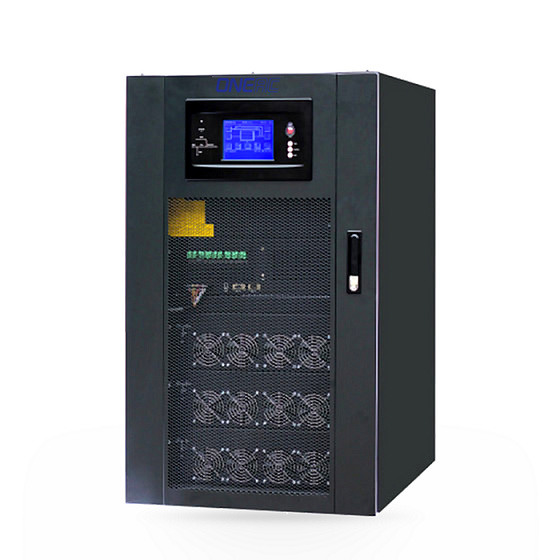

92M Series Modular Online UPS 20-200KVA (380V/400V/415V)
200 kVA
92M series is modular online UPS for sensitive equipments. The single cabinet power rating covers from 20kVA to 200KVA.With the latest IGBT three-level and full DSP control technology, the 92M series delivers the best of combination of reliabilty,hot swappable and flexibility.
Specifications
| MODEL | 92M200/20X | 92M120/20X | 92M60/20X | ||
|---|---|---|---|---|---|
| System Capacity | 200kVA | 120kVA | 60kVA | ||
| Power Module Capacity | 20kVA/18kW | ||||
| Input | Dual Input | Optional | |||
| Phase | 3 Phase+Neutral+Ground, 380V/400V/415V(line-line) | ||||
| Input Voltage Range | 304~478Vac (line-line),full load; 228V~304Vac (line-line),load decreases linearly according to the min phase voltage | ||||
| Rate Frequency | 50/60Hz | ||||
| Bypass | Input Frequency Range | 40Hz～70Hz | |||
| Input PF | >0.99 | ||||
| Input THDi | <3% （100% Linear load） | ||||
| Rate Voltage | 380/400/415Vac (line-line) | ||||
| Rate Frequency | 50/60Hz | ||||
| Output | Input Voltage Range | Settable, -40%～+25% | |||
| Bypass Frequency Range | Settable, ±1Hz, ±3Hz, ±5Hz | ||||
| Bypass Overload | 125% long term operation; 130% for 1 hour ;150% for 6 mins; 1000% for 100ms | ||||
| Rate Voltage | 380/400/415Vac (line-line) | ||||
| Voltage Regulation | 1% for balance load; 1.5% for unbalance load | ||||
| Battery | Rate Frequency | 50/60Hz | |||
| Frequency Precision | 0.1% | ||||
| Output PF | 0.9 | ||||
| Output THDu | <1% , Linear load; <5.5%, Non-linear load | ||||
| Crest Factor | 3:1 | ||||
| Inverter Overload | 110% for 1 hour; 125% for 10 mins ;150% for 1 min; >150% for 200 ms | ||||
| Voltage | ±240Vdc | ||||
| Battery Number | 40pcs (Settable: even number from 32 to 44) | ||||
| Voltage Precision | ±1% | ||||
| Charge Power | up to 20% * Output active power | ||||
| Battery Cold Start | Standard | ||||
| Efficiency | AC Mode | 95.0% | |||
| ECO Mode | 99.0% | ||||
| Battery Mode | 95.0% | ||||
| System | Display | 5.7" touch screen LCD + LED + keyboard | |||
| IP Class | IP 20 | ||||
| Interface | RS232,RS485, Programmable Dry Contact | ||||
| Option | SNMP Card, Parallel kit, SPD, LBS, Dust filter | ||||
| Temperature | Operation: 0～ 40 ℃ Storge: -40 ～70 ℃ | ||||
| Relative Humidity | 0 ～95% Non-condensing | ||||
| Altitude | <1000m. Within 1000m to 2000m, power derate 1% for every 100m rise | ||||
| Noise (1 meter) | 55dB @ 50% load | ||||
| Applicable Standards | Safety: IEC/EN 62040-1 EMC: IEC/EN 62040-2 Performance: IEC/EN 62040-3 | ||||
| Physical | Weight (kg) | Cabinet | 180 | 150 | 105 |
| Power module | 22 | ||||
| Dimension W*D*H(mm) | Cabinet | 600*900*2000 | 600*900*1600 | 600*900*1100 | |
| Power module | 440*590*134 | ||||
