Online UPS Systems

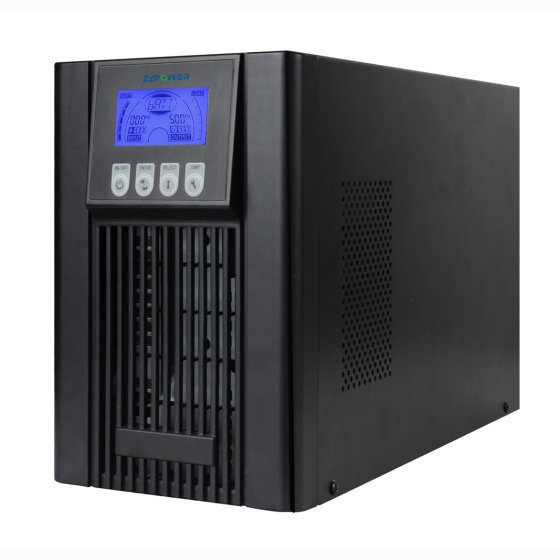

CX1KVA-3KVA nobreak Online UPS High Frequency UPS
1-3 kVA
CX1-3K series high frequency online UPS is specially designed for servers, data-center critical network devices, sensitive electronic equipment, telecom, bank, hospital, bureau, traffic, public security, ATM and so on.
Specifications
| Model | CX1K | CX1KL | CX2K | CX2KL | CX3K | CX3KL | |
|---|---|---|---|---|---|---|---|
| Capacity | VA/W | 1000VA/900W | 1000VA/900W | 2000VA/1800W | 2000VA/1800W | 3000VA/2700W | 3000VA/2700W |
| Input | Nominal Voltage | 200/208/220/230/240VAC | |||||
| Voltage Range | 115～300VAC | ||||||
| Harmonic Distortion | <10% (Nonlinear load) | ||||||
| Power Factor | 0.98 | ||||||
| Frequency Range | 50Hz:46~54Hz; 60Hz:56~64Hz | ||||||
| Output | Voltage | 200/208/220/230/240(1±1%)VAC | |||||
| Frequency | 50/60Hz (Adjustable); 50Hz AC Mode: Follow AC Mode (AC Range 46~54Hz); Battery Mode: 50Hz (1±0.2%) 60Hz AC Mode: Follow AC Mode (AC Range 56~64Hz); Battery Mode: 60Hz (1±0.2%) | ||||||
| Wave Form | Pure sine wave | ||||||
| Power Factor | 0.9 | ||||||
| Harmonic Distortion | ≤4% (Linear load); ≤7% (Nonlinear load) | ||||||
| Overload Capacity | 105%～150% 45S～25S; 150%～200% 25s～300ms; ≥200% 200ms | ||||||
| Current Crest Ratio | 3∶1 | ||||||
| Connections | IEC320*4 | ||||||
| Efficiency | Battery Mode | 81% | 83% | ||||
| AC Mode | 85% | 87% | |||||
| Battery | Type | Sealed free maintenance lead acid battery | |||||
| Nominal DC voltage | 24VDC | 36VDC | 48VDC | 72VDC | 72VDC | 96VDC | |
| Quantity | 12VDC×2 | 12VDC×3 | 12VDC×4 | 12VDC×6 | 12VDC×6 | 12VDC×8 | |
| Backup Time (Full Load) | ﹥2.5min (Built in batteries12V9AH) | Depends on requested Back-up time | ﹥5min (Built in batteries12V 9AH) | Depends on requested Back-up time | ﹥4.5min (Built inbatteries12V7AH) | Depends on requested Back-up time | |
| Charge Current (Max) | 1A | 5A | 1A | 5A | 1A | 5A | |
| Charge Voltage (VDC) | 27.4V±0.2VDC | 41.1V±0.2VDC | 54.8V±0.4VDC | 82.2V±0.6VDC | 82.2V±0.6VDC | 110±0.6VDC | |
| Recharge Time | 7 hours filling to 90% (standard) | Depends on external battery capacity (long-term) | 5 hours filling to 90% (standard) | Depends on external battery capacity (long-term) | 5 hours filling to 90% (standard) | Depends on external battery capacity (long-term) | |
| Bypass | Automatic Transfer | On overload and UPS failure | |||||
| Before UPS onduleur Power-on | Default ”ON” user adjustable to “YES” | ||||||
| Transfer Time | 0 ms; Less than 4ms from inverter to bypass and vice versa | ||||||
| indicators | LCD Display | UPS status, Battery capacity, loading, Fault code (LCD: I/P ＆O/P voltage＆frequency, Battery voltage) | |||||
| Audible | Bypass, On battery mode, Battery low, Overload, Fault | ||||||
| Acoustic Noise | At 1 Meter Distance | <45dB | <50dB | ||||
| Communications | Intelligent RS232 serial port | Software support Windows family software, Linux, Sun network operating system, IBM Aix, Compaq True64 SGI IRIX, FreeBSD, HP-UX and MAC | |||||
| SNMP (Optional) | Remote control UPS through SNMP management and Internet | ||||||
| USB (Optional) | Windows family software and Mac OS | ||||||
| Environmental | Operating Temperature | 0~40℃ | |||||
| Operating Humidity | 20～90% (No condensing) | ||||||
| Physical Parameter | L*W*H (mm) | 373*145*219 | 448*192*341 | ||||
| Net Weight (Kgs) | 9.5 | 5 | 17.5 | 9.5 | 22 | 10 | |
