EX3320K-EX3380K Online UPS High Frequency UPS
Online UPS Systems

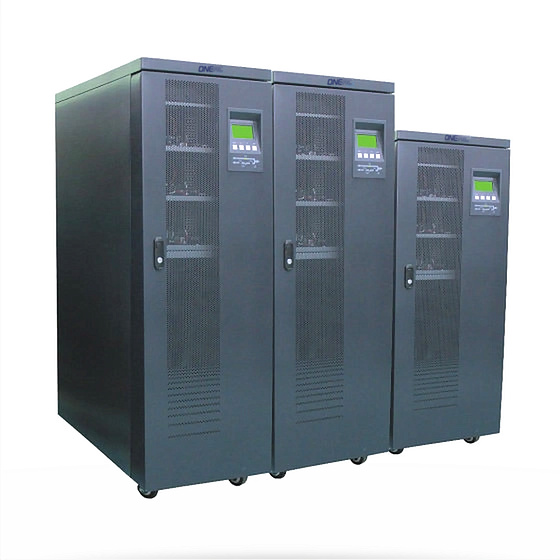

EX3320K-EX3380K Online UPS High Frequency UPS

Three phase High frequency online UPS EX3320K-EX3380K is IGBT rectified uninterruptible power supply 20KVA to 80KVA, Three phase 4line and ground, 0.8 output power factor and DSP chip, is applicable to small and medium-sized data centers, network management center, computer rooms for enterprises, or able to provide solutions to conditions like voltage...

    Ask about this product
    Countrywide delivery 12-month local warranty Installation available
    Specifications
    ModelEX3320KEX3330KEX3340KEX3360KEX3380K
    Rated Capacity20KVA/16KW30KVA/24KW40KVA/32KW60KVA/48KW80KVA/64KW
    InputVoltage210-475VAC
    Frequency40-70Hz
    Phase LineThree-phase 4 line + earth line
    THDI<3%
    Input Power Factor>0.99
    Twin-channel Line InputYes
    BatteryTypeValve-regulated lead-acid storage battery
    Standby TimeDepended by external battery bank
    OutputVoltage380VAC / 220 VAC
    Frequency50/60Hz
    Phase lineThree-phase 4 line + earth line
    Rated output power factor0.8
    Overload Capacity125% maintain 10minutes
    150% maintain 1minutes
    EfficiencyLine Input Mode93%94%
    BAT Mode93%94%
    ECO Mode98%
    Intelligent Speed Control of Fanyes
    Display DeviceLCDI/O voltage, current, frequency, BAT voltage, charging current value, discharging current value, fault display, fault, warning
    LEDThe operation state of UPS
    Warning DevicesTwo ways of alerting: BUZZER sound, lamp signal,
    Communication InterfaceRS232, AS400, RS485, Service, EPO, BAT temperature compensation, Intelligent Slot
    OperationTemperature0-40℃
    EnvironmentHumidity<95% (non condesing)
    WeightNet weight(include transformer)82Kg/208Kg110Kg/275Kg114Kg/314Kg282Kg306Kg
    Gross weight(include transformer)122Kg/248Kg160Kg/325Kg164Kg/364Kg356Kg380Kg
    Dimension L*W*H（mm）643×420×925710×470×1150800×600×1850
