Online UPS Systems
EX6KVA-20KVA Online UPS High Frequency UPS
6-20 kVA

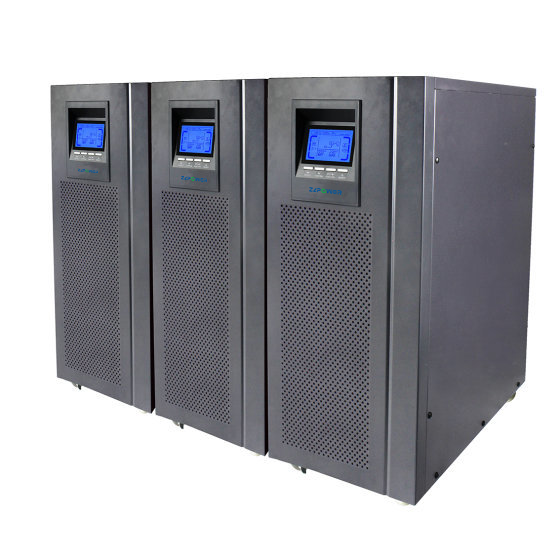

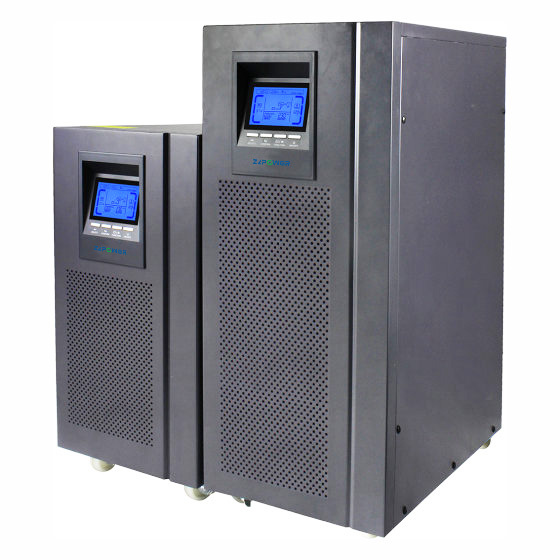

EX6K-EX10KL high frequency online UPS, is a powerful product range with high adaptability and flexibility. Its cut-edge digital control technology of DSP (Digital Signal Processor), can greatly improve the product performance and system reliability, and deliver a compact integration with higher power density.
Specifications
| Online UPS MODEL | EX6K | EX6KL | EX10K | EX10KL | |
|---|---|---|---|---|---|
| CAPACITY | VA/W | 6KVA/4.8KW | 6KVA/4.8KW | 10KVA/8KW | 10KVA/8KW |
| INPUT | Nominal Voltage | 220/230/240VAC | |||
| Voltage Range | 120-275VAC | ||||
| Frequency Range | 46-64Hz: 50Hz, 60Hz auto sense | ||||
| Phase | Single phase with Ground | ||||
| Power Factor | >=0.99 | ||||
| OUTPUT | Voltage | 220/230/240*(1±1%)VAC | |||
| Frequency | 50/60Hz(Adjustable) 50Hz AC Mode: Follow AC Mode (AC Range 46~54Hz); Battery Mode: 50Hz(1±0.1%) 60Hz AC Mode: Follow AC Mode (AC Range56~64Hz); Battery Mode: 60Hz(1±0.1%) | ||||
| Wave Form | Pure Sine Wave | ||||
| Power Factor | 0.8 | ||||
| Harmonic Distortion | =<2% THD (Linear Load), =<6% THD (Non-Linear Load) | ||||
| Overload Capacity | Normal when load < 105%; 105%-125% for 1 min, 125%-150% for 30sec | ||||
| Current Crest Ratio | 3:1 | ||||
| Connections | Terminal block | ||||
| Efficiency | To AC Mode | 88% | |||
| To Battery Mode | up to 90% | ||||
| Battery | Type | Sealed free maintenance lead acid battery | |||
| Nominal DC voltage | Built in batteries 12v 7.2ah*16pcs | 192VDC | Built in batteries 12v 7.2ah*16pcs | 192VDC | |
| Quantity | 16pcs | Depends on requested back-up time | 16pcs | Depends on requested back-up time | |
| Back-up Time (Full load) | >=7 minutes | Depends on the capacity of external battery bank | >=5 minutes | Depends on the capacity of external battery bank | |
| Recharge Time | 7 hours to 90% | Depends on the capacity of external battery bank | 7 hours to 90% | Depends on the capacity of external battery bank | |
| Charge current(MAX) | 2.0A | 4.2A or 8A | 2.0A | 4.2A or 8A | |
| Charge voltage | 220Vdc ± 1% | ||||
| Bypass | Automatic Transfer | On overload and UPS failure | |||
| Before UPS Power-on | Default "NO" user adjustable to "YES" | ||||
| Transfer Time | Zero | ||||
| Indicators | LED Display | UPS status, I/P & O/P voltage& frequency, Battery voltage, Battery capacity, Loading, Fault code | |||
| Audible Alarm | Bypass, On battery mode, Battery low, Overload, Fault | ||||
| Acoustic noise | At 1 meter distance | <55dB | |||
| Communications | Intelligent RS232 serial port | Windows 98/NT/2000/XP/2003, Linux, Sun Solaris, IBM Aix, Compaq True64, SGI IRIX, FreeBSD, HP-UX, and MAC | |||
| SNMP (Optional) | Power management from SNMP manager and web browser | ||||
| USB (Optional) | Windows family software and Mac OS | ||||
| Environmental | Operating Temperature | 0~40 ℃ | |||
| Operating Humidity | 20~90% ( Non Condensing) | ||||
| Weight | Net weight (kg) | 57 | 18 | 67.5 | 20 |
| UPS Dimension | L*W*H (mm) | 500*248*616 | 500*248*616 | 500*240*460 | 500*240*460 |
