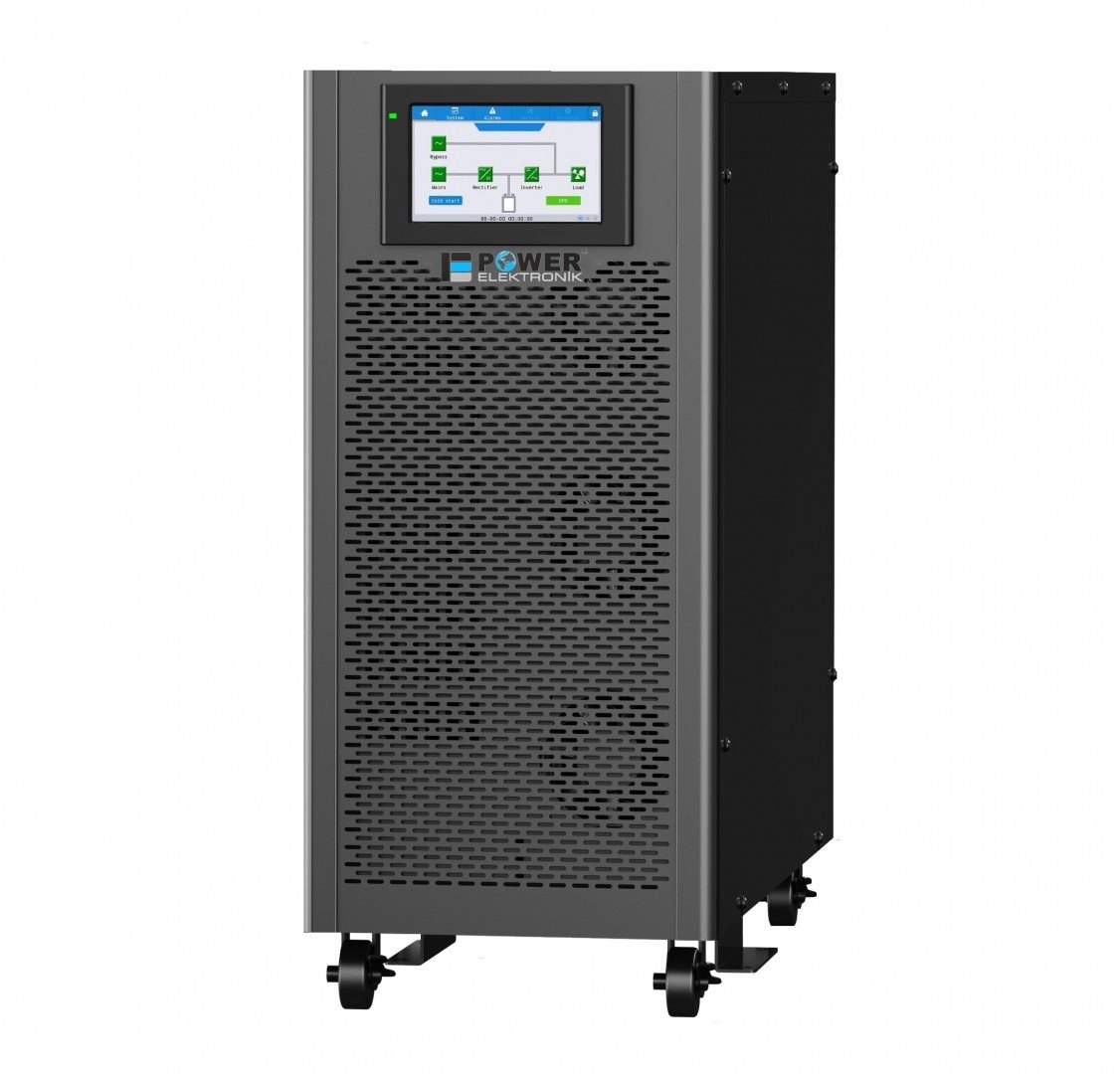

PWR33-OL 20000 Model 20 kVA Online UPS

PWR33-OL 20000 MODEL 20kVA ONLINE UPS · 3-Phase Input - 3-Phase Output · Transformerless Double Conversion Online IGBT UPS design · 20kVA output power · 380/4000/415 Vac output voltage selection · 50Hz - 60Hz operating frequency automatic recognition · Output Power Factor 1 (20kVA = 20kW) · Cold Start (Battery Start) · Static Bypass feature provides overload and overheat protection · Full metal housing, resistant to breakage and crushing during transportation · Internal 40 pcs 12V 9Ah batteries provide battery power for 5 minutes at full load and 15 minutes at half load · External battery connection options available for 30-40 selectable batteries · Plug-and-play compatibility, custom installation No installation required · Inputs and outputs consist of easy-to-connect terminals. · 1-Year warranty · Shipped the next day · Technical Data for Installers: · Input Fuse Value: 3 x 40 A · Input Cable Cross-Section: 4 x 6 mm² · Grounding Cables: 1 x 6 mm² · Output Fuse Value: 3 x 32 A · Output Cable Cross-Section: 4 x 6 mm² · Battery Fuse Value: 3 x 32 A · Battery Cable Cross-Section: 3 x 6 mm²
